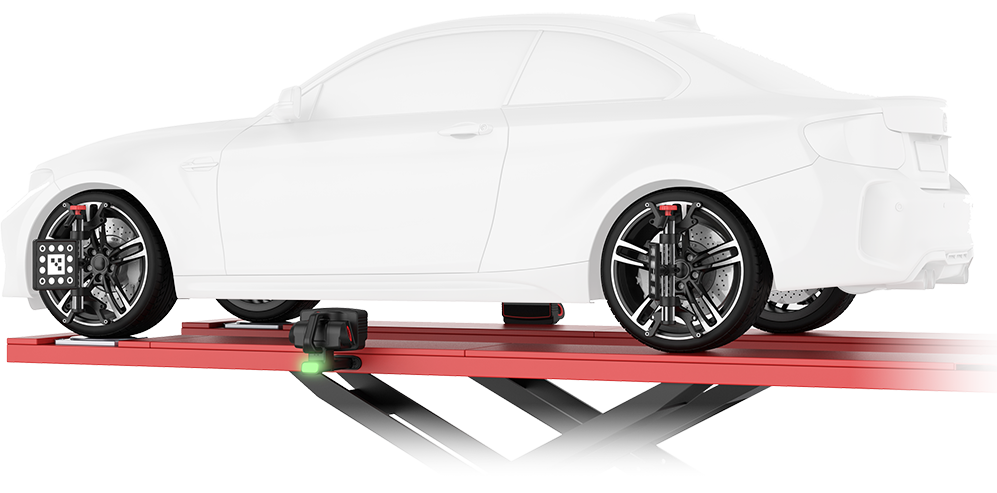

WA613 is a Magnetic Wireless 3D Wheel Aligner with a new industrial design that abandons the beam and cabinet of traditional 3D aligners. It consists of 2 magnetic measuring units and 4 wheel-clamp targets, and performs four-wheel alignment through wireless communication. No installation, wiring or calibration is required — it is ready to use right out of the box. The compact design saves space, high-precision measurement completes in under 30 seconds, and wireless transmission via the ST13 terminal displays results and eases under-vehicle adjustment. Lightweight packaging is only 20–30% of the transport weight and volume of traditional 3D machines, and the unit is compatible with large scissor lifts and four-post lifts.
Ready out of the box
No installation, no wiring and no calibration required — the device is ready to use as soon as it is unpacked.
Space-saving
No beam or cabinet — requires significantly less space in the shop compared with traditional 3D aligners.
Measurement in under 30 seconds
Outputs high-precision four-wheel alignment results within 30 seconds.
Two types of clamps

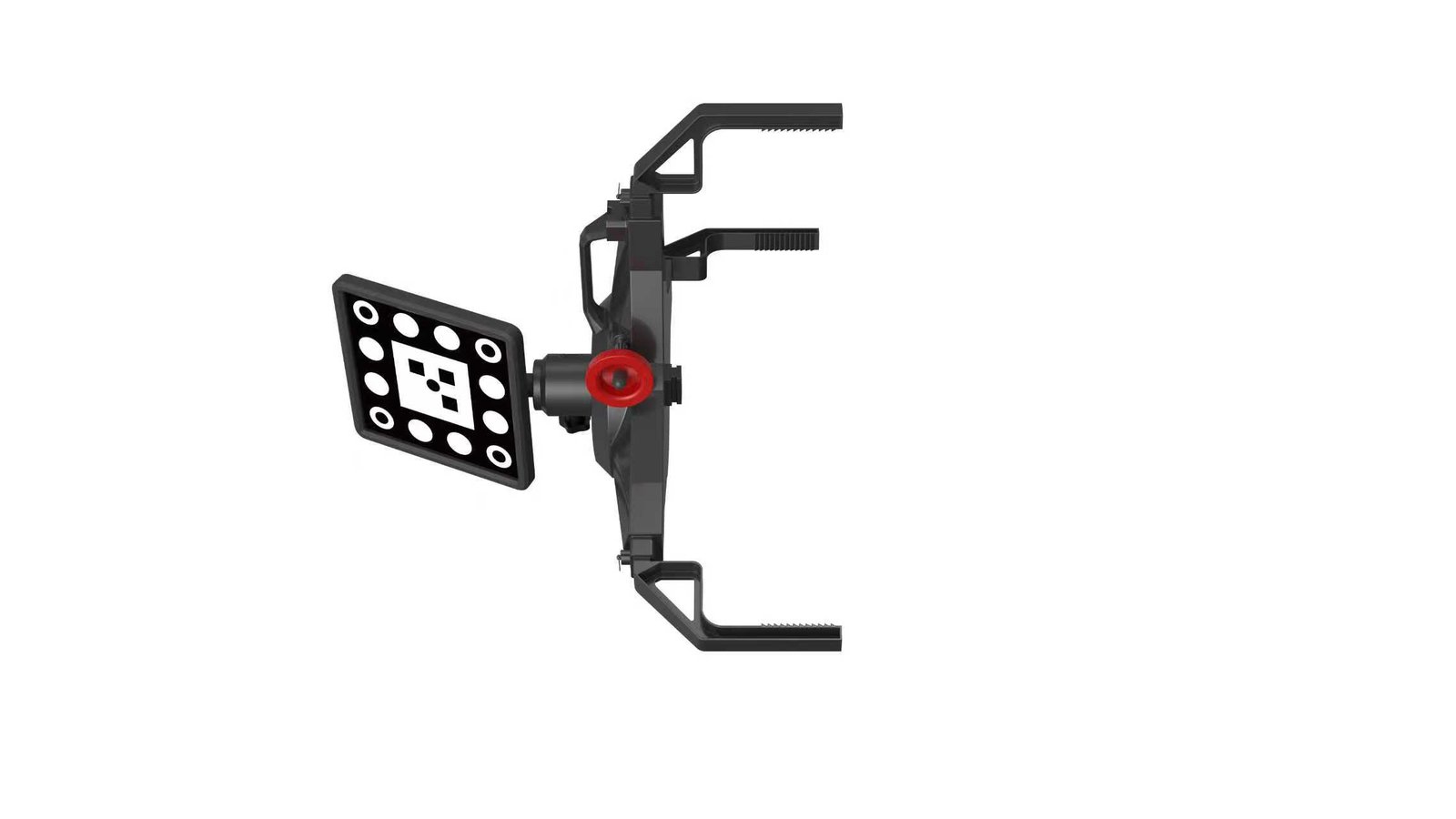

Four-point wheel hub clamps (lightweight, more cost-effective) and three-point tire clamps (no contact with the wheel hub); both universal for the target.
Innovative clamp design
Lightweight clamps, easy to operate and convenient to carry — practical for everyday use.

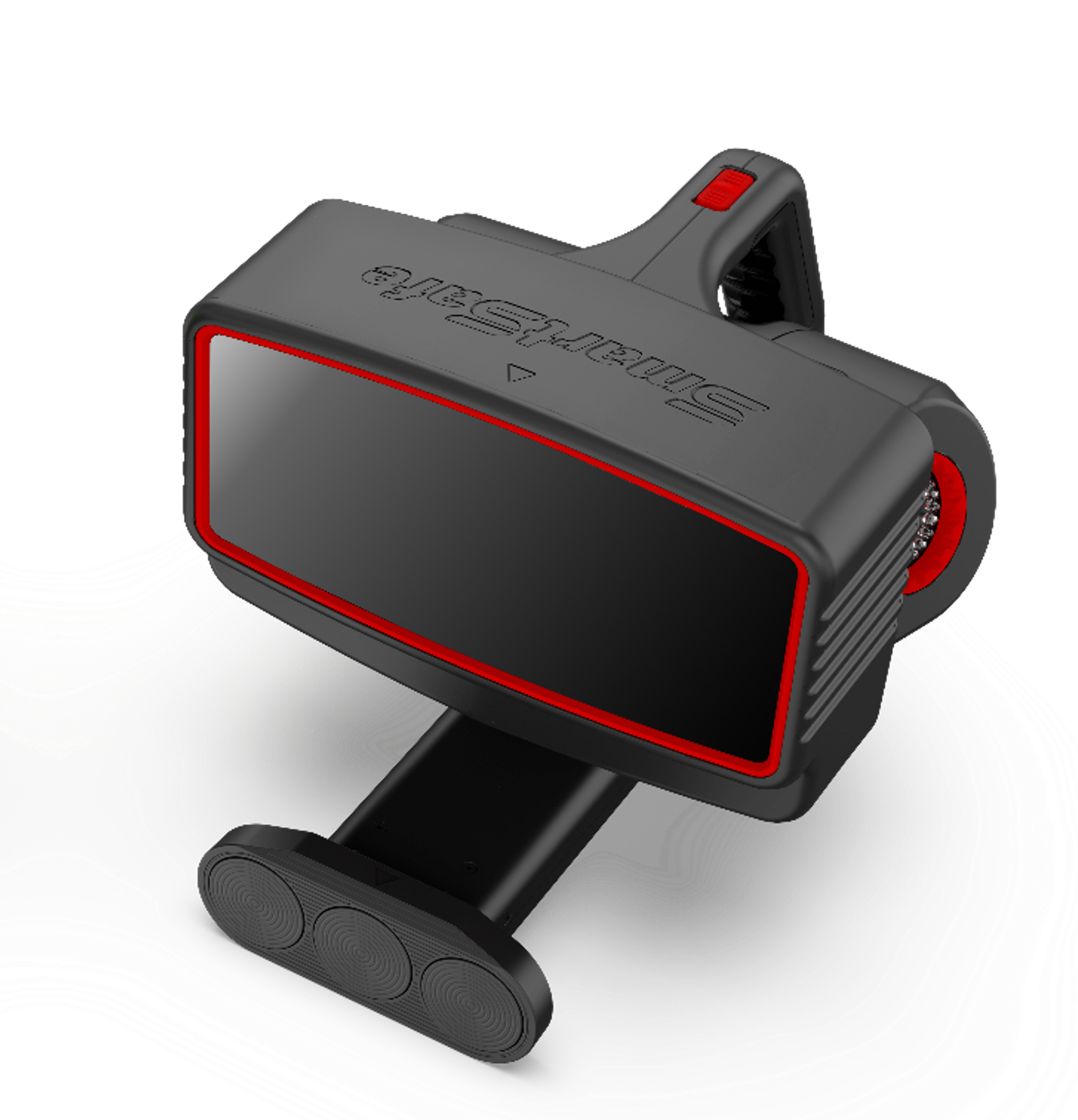

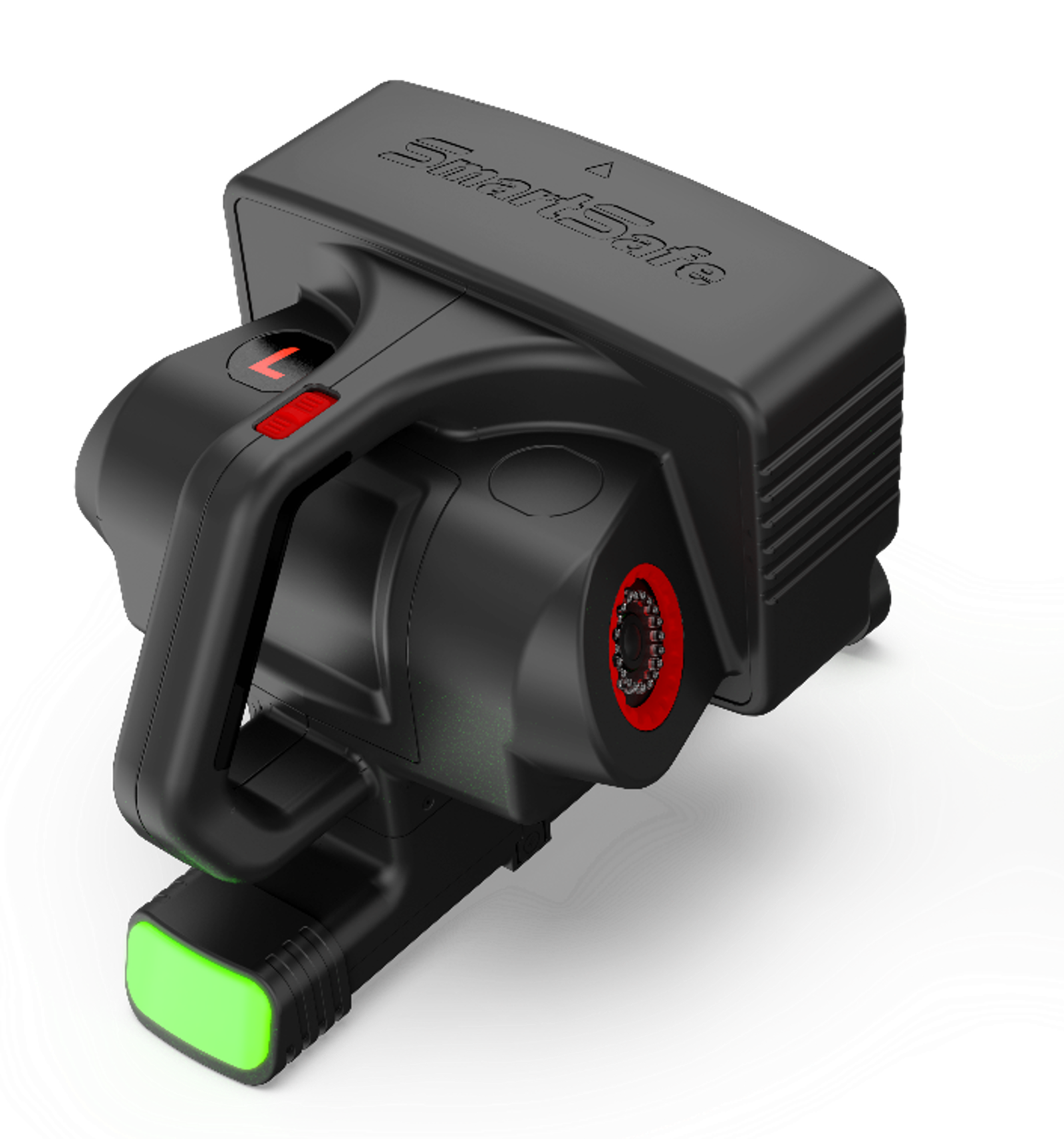

Magnetic measuring units
No assembly or wiring, no calibration — free to go, ready to use out of the box.

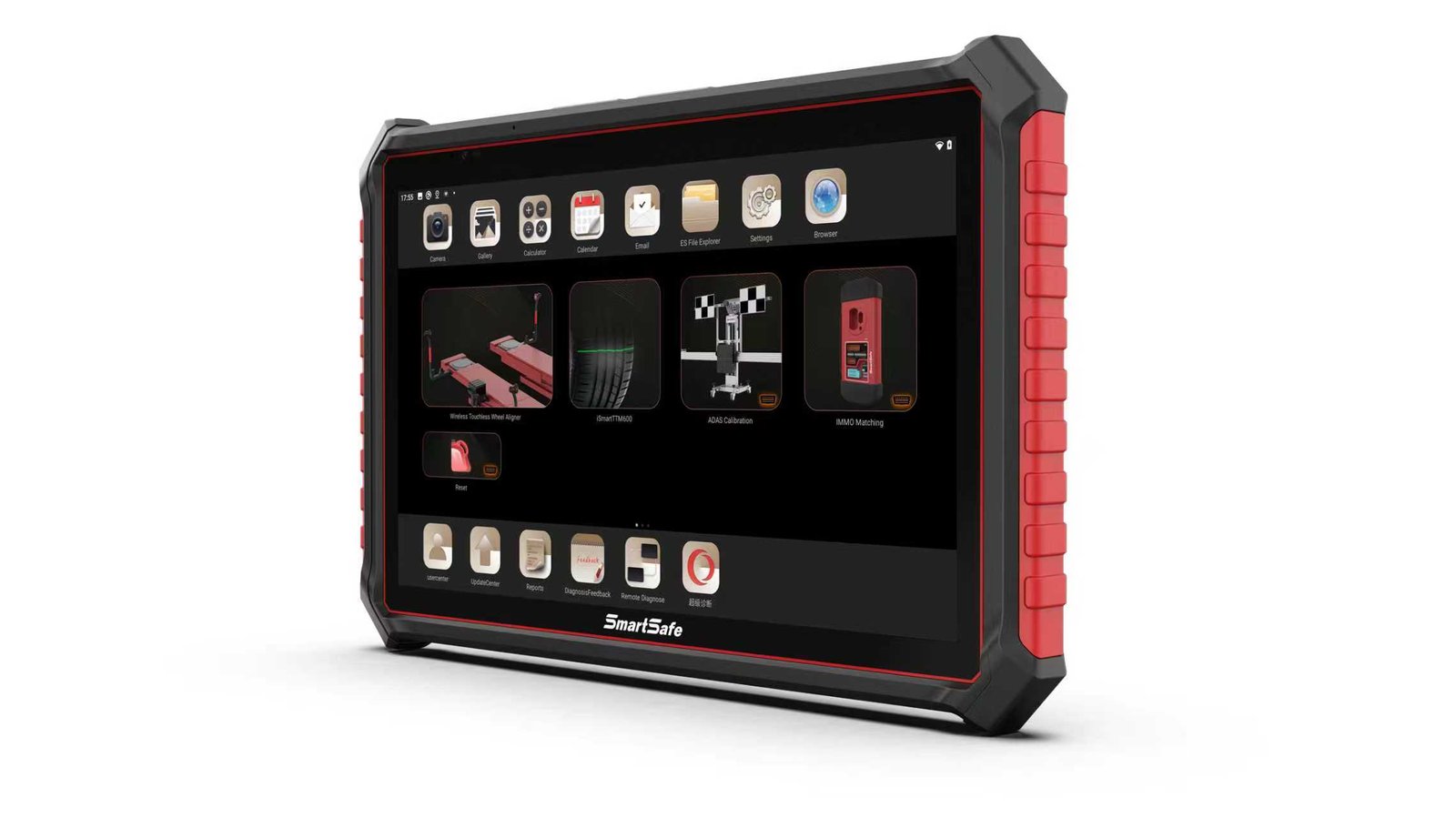

Wireless transmission via ST13
The ST13 intelligent connection terminal displays measurement results and process and eases under-vehicle adjustment.
Compact packaging
Lightweight design and materials reduce transport weight and volume to only 20–30% of traditional 3D alignment machines.
Lift compatibility
Compatible with large scissor lifts and four-post lifts — easy integration into an existing shop.
Mobile app
The device can be paired with a smartphone app to remotely monitor operational status and performance data in real time.
Features
- Magnetic Wireless 3D Wheel Aligner — magnetic wireless 3D aligner with a new industrial design
- Abandons the beam and cabinet of traditional 3D aligners — 2 magnetic measuring units + 4 wheel-clamp targets
- No installation, wiring or calibration — ready to use right out of the box
- Beamless, cabinet-free design — saves space in the shop
- High-precision measurement in under 30 seconds
- Two clamp types: four-point wheel hub clamps (lightweight, cost-effective) and three-point tire clamps (no hub contact); both universal for the target
- Innovative clamp design — lightweight, easy to operate and portable
- Magnetic measuring units — no assembly or wiring, no calibration
- Wireless transmission via the ST13 intelligent terminal — displays results and process, eases under-vehicle adjustment
- Compact packaging — transport weight and volume only 20–30% of traditional 3D machines
- Compatible with large scissor lifts and four-post lifts
- Mobile app compatibility — pair with a smartphone to remotely monitor device status and performance data
- Geometry measurement: toe, camber, caster, steering axis inclination (SAI/KPI) and thrust angle
- Additional measurements: wheelbase, wheel track, axle offset, wheel offset, diagonal, center offset
- Database of 50,000+ global vehicle models, with user-defined database
- Professional test reports with before/after comparison and sharing
Specifications
| Model | WA613 · Magnetic Wireless 3D Wheel Aligner |
|---|---|
| Concept | Beamless · cabinet-free · wireless magnetic measuring units |
| Toe-in | ±20° |
| Camber | ±10° |
| Caster | ±20° |
| SAI / KPI | ±20° |
| Maximum steering angle | ±35° |
| Wheel Track | 1290–1900 mm |
| Wheel Base | 1940–4600 mm |
| Wheel diameter (4-point wheel hub clamp) | 275–640 mm |
| Tire diameter (3-point tire clamp) | 470–1100 mm |
| Vehicle database | 50,000+ models · customizable · user-defined |
| Connectivity | Wireless · ST13 intelligent terminal · mobile app |
| Reports | Comparative (before/after) · shareable · print |
| Compatibility | Large scissor lifts and four-post lifts |
| Packaging | Measuring unit casing · accessory box · clamp choice · optional toolbox |
