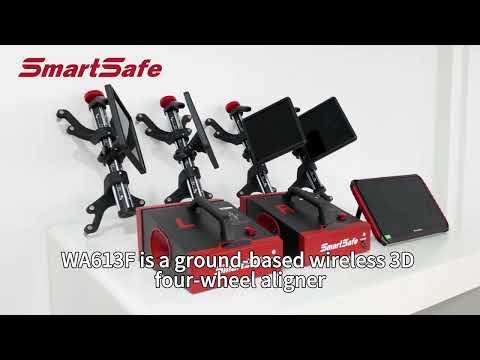

WA613F is a Ground-based Wireless 3D Wheel Aligner designed for workshops with a car repair gutter. It consists of two ground-based measuring units, four wheel-clamp targets and an ST13 tablet terminal, and performs four-wheel alignment through wireless communication. No installation, wiring or calibration is required — measurement is carried out on the floor beside the gutter, and the unit is ready to use right out of the box. Thanks to the floor-standing concept, it needs significantly less space than traditional 3D aligners with a beam and cabinet. High-precision measurement completes quickly, wireless transmission via the ST13 terminal displays results and eases under-vehicle adjustment, and the device supports a database of over 50,000 models and professional reports with before/after comparison.
Floor-standing concept for gutters

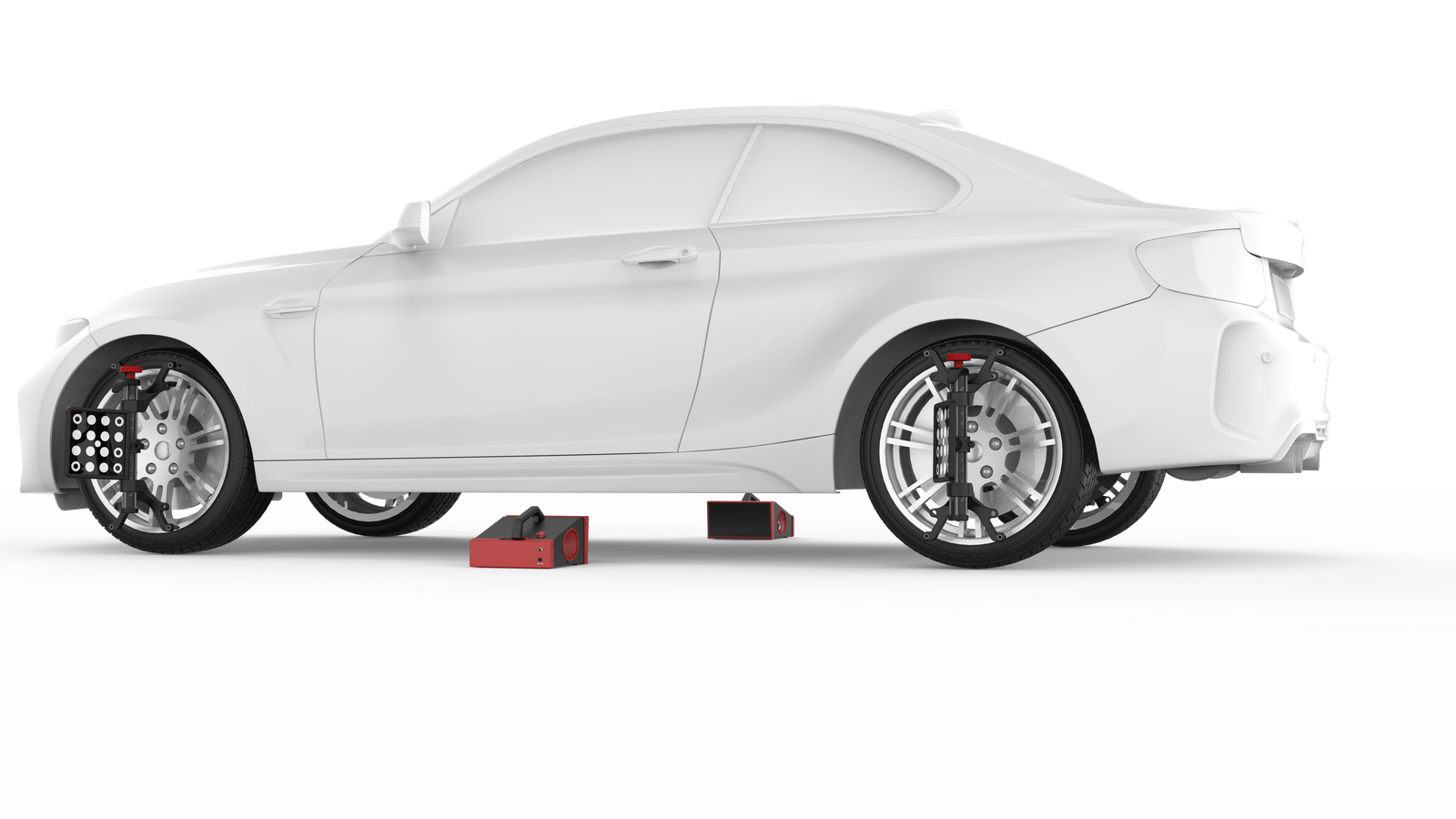

Two ground-based measuring units are placed on the floor beside the car repair gutter — ideal for service pits and gutters without a lift.
Ready out of the box
No installation, no wiring and no calibration — the unit is ready to work as soon as it is unpacked.
On-floor measurement
Measurement is performed on the floor, with a minimal space requirement — no beam or cabinet taking up the work zone.
Fast measurement
Outputs high-precision four-wheel alignment results within 30 seconds.
Wireless via ST13
The ST13 tablet terminal wirelessly displays results and the measurement process and eases under-vehicle adjustment.
50,000+ model database
Database of over 50,000 global vehicle models, with a user-defined database and continuous updates.
Two clamp types
Four-point hub clamp and three-point tire clamp — both universal for the target, adaptable to different wheels.
Professional reports
Professional reports with before/after comparison, electronic sharing and archiving.
Car repair gutter support
Built to work alongside a car repair gutter — easy integration into workshops with a service pit.
Features
- Ground-based Wireless 3D Wheel Aligner — floor-standing 3D aligner for car repair gutter

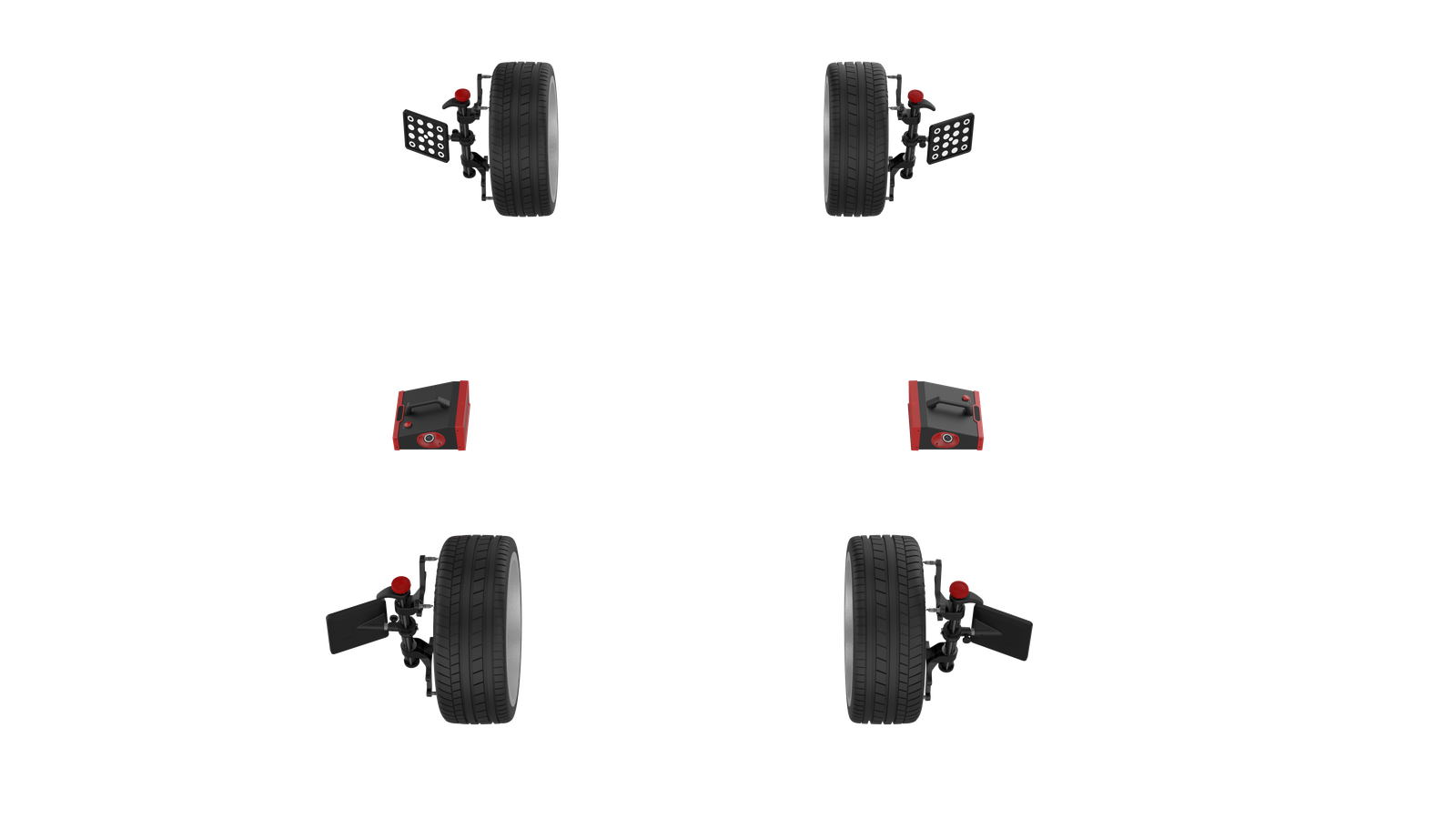

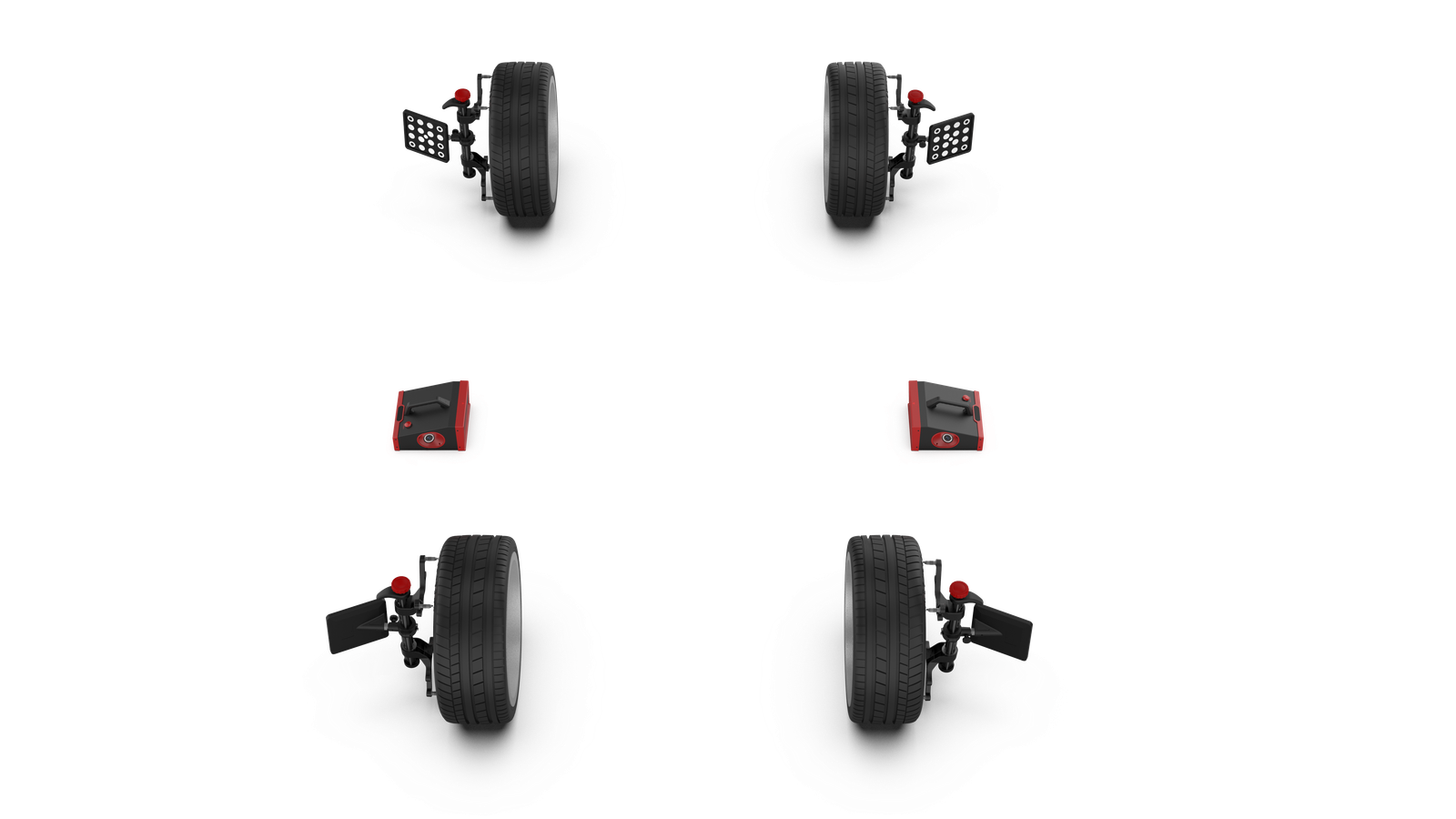

- Consists of 2 ground-based measuring units, 4 wheel-clamp targets and an ST13 tablet terminal
- No installation, wiring or calibration — ready to use right out of the box
- On-floor measurement beside the gutter — minimal space requirement, no beam or cabinet
- Fast high-precision measurement — four-wheel alignment results within 30 seconds
- Wireless transmission via the ST13 tablet terminal — results display and easier under-vehicle adjustment
- Database of over 50,000 global vehicle models, with a user-defined database
- Two clamp types: four-point hub clamp and three-point tire clamp; both universal for the target
- Alignment measurement: toe, camber, caster, steering axis inclination (KPI/SAI) and thrust angle
- Additional measurements: wheelbase, wheel track, axle offset, wheel offset, diagonal, center offset
- Professional reports with before/after comparison and sharing
- Car repair gutter support — easy integration into workshops with a service pit
Specifications
| Model | WA613F · Ground-based Wireless 3D Wheel Aligner |
|---|---|
| Concept | Ground-based measuring units · wireless · for car repair gutter |
| Composition | 2 ground-based measuring units + 4 wheel-clamp targets + ST13 tablet terminal |
| Toe-in | ±20° |
| Camber | ±10° |
| Caster | ±20° |
| SAI / KPI | ±20° |
| Max. steering angle | ±35° |
| Wheel Track | 1290–1900 mm |
| Wheel Base | 1940–4600 mm |
| Wheel diameter (4-point hub clamp) | 275–640 mm |
| Tire diameter (3-point tire clamp) | 470–1100 mm |
| Vehicle database | 50,000+ models · customizable · user-defined |
| Connectivity | Wireless · ST13 tablet terminal |
| Reports | Comparative (before/after) · shareable · print |
| Application | Car repair gutter · on-floor measurement |
| Certification | CE |
| Documentation | User manual · CE certificate · packing list · spare parts list · flyer |
