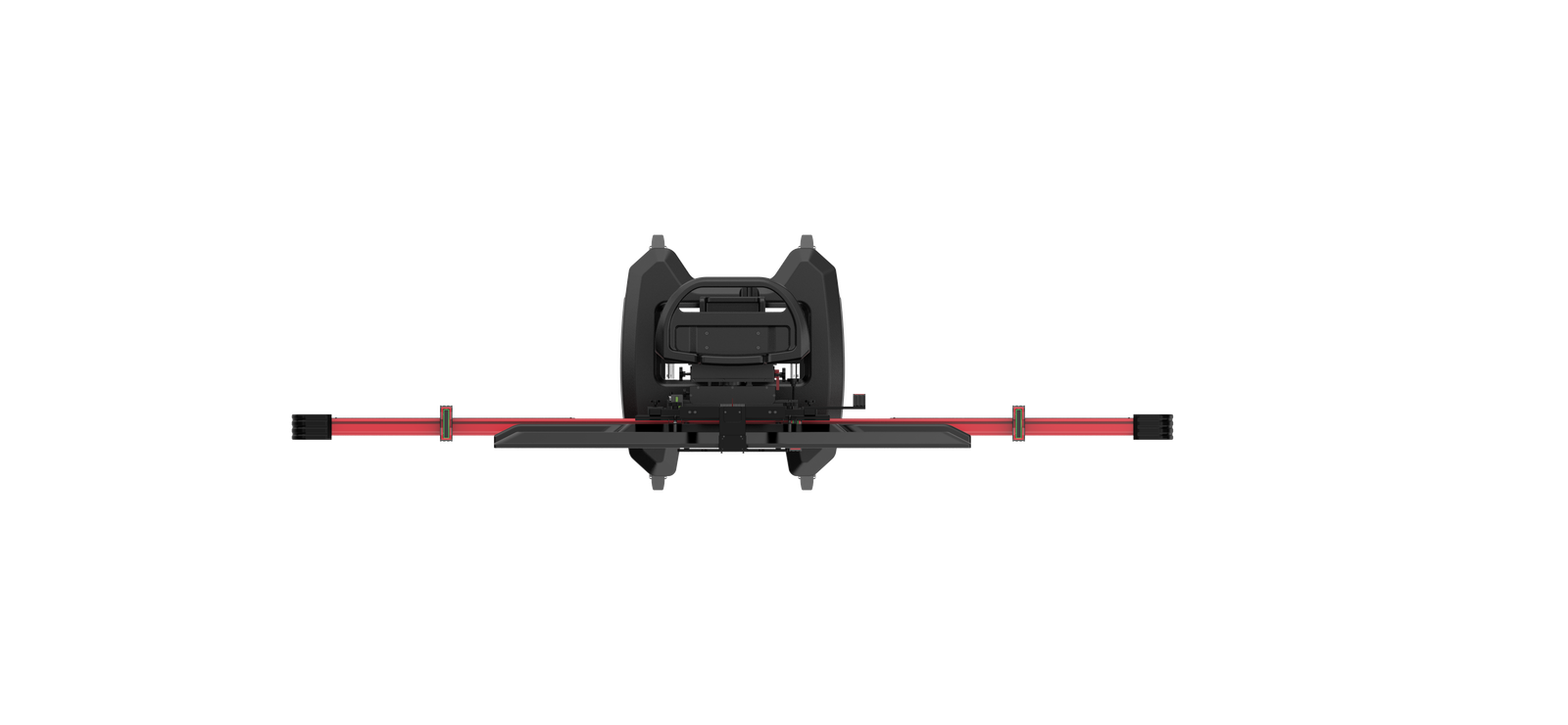

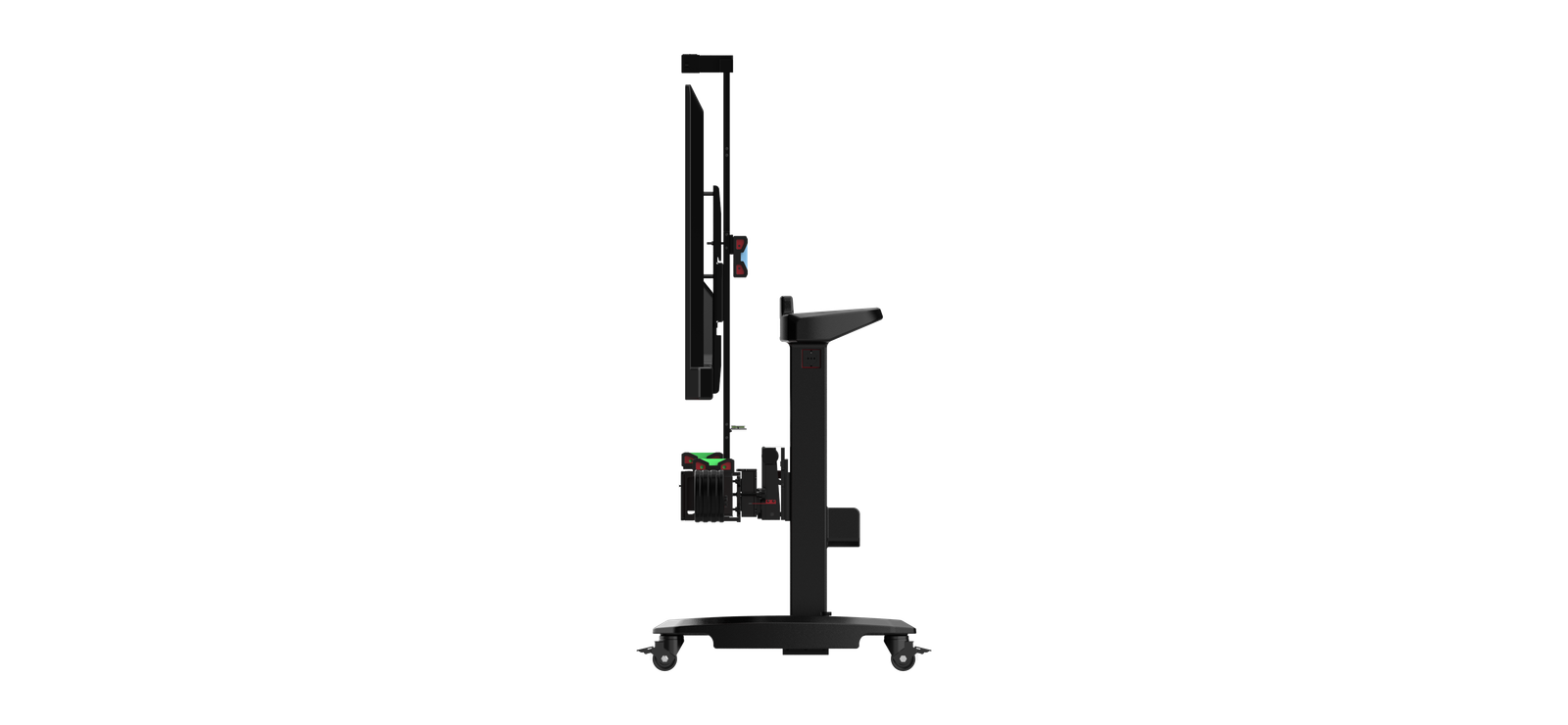

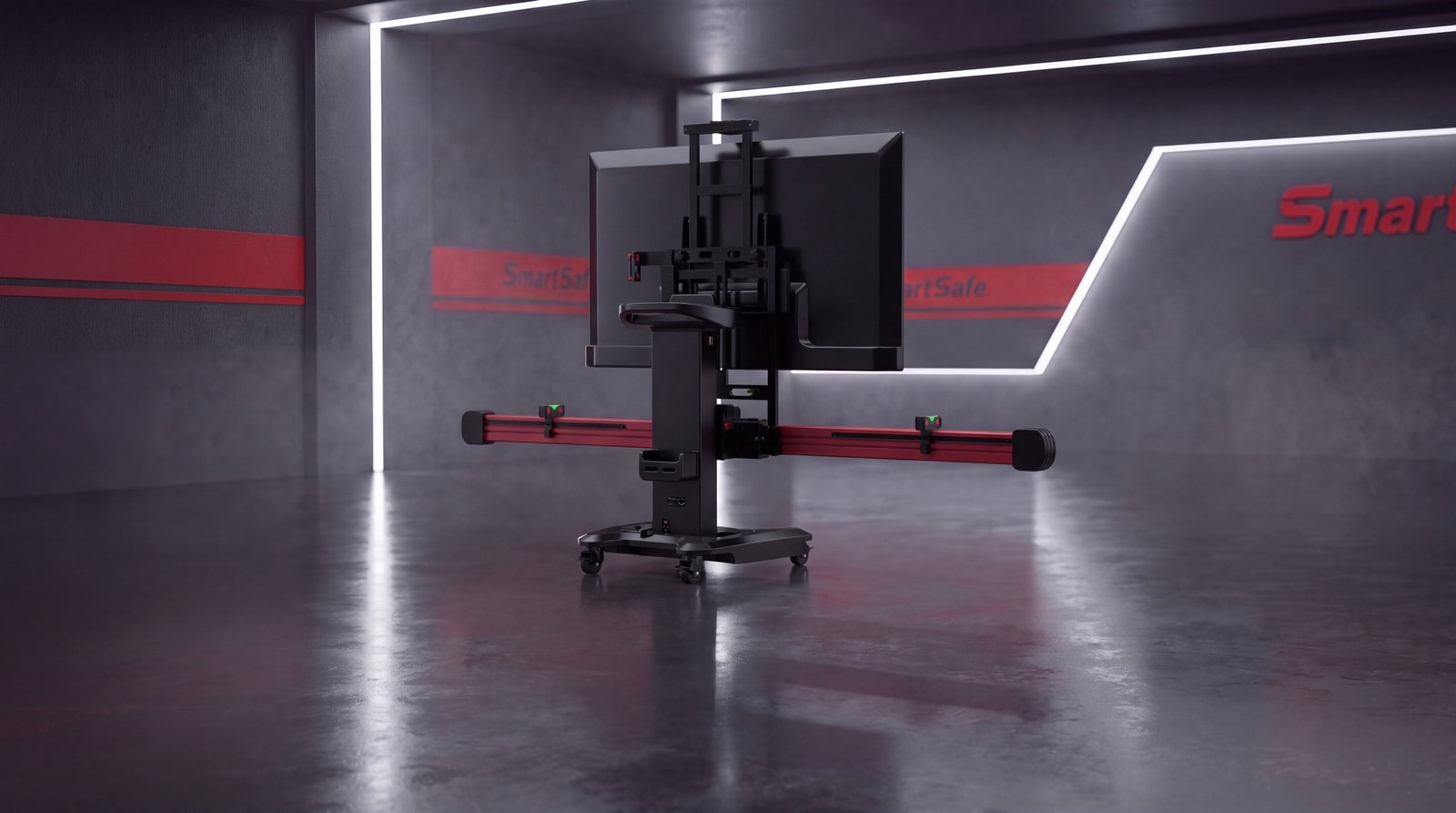

WAA613 V2 combines WA613 V2 wheel alignment and ADAS Pro+ V3 calibration into one all-in-one system. Laser centering, digital targets on an HD screen and a 75″ smart display cut setup time and move from alignment to ADAS calibration in one click — without re-setup. Built for shops that want a faster, smarter workflow with coverage of over 95% of vehicle models.
Integrated workflow
Switch to ADAS calibration with one click after wheel alignment — no repeated setup or re-measurement.

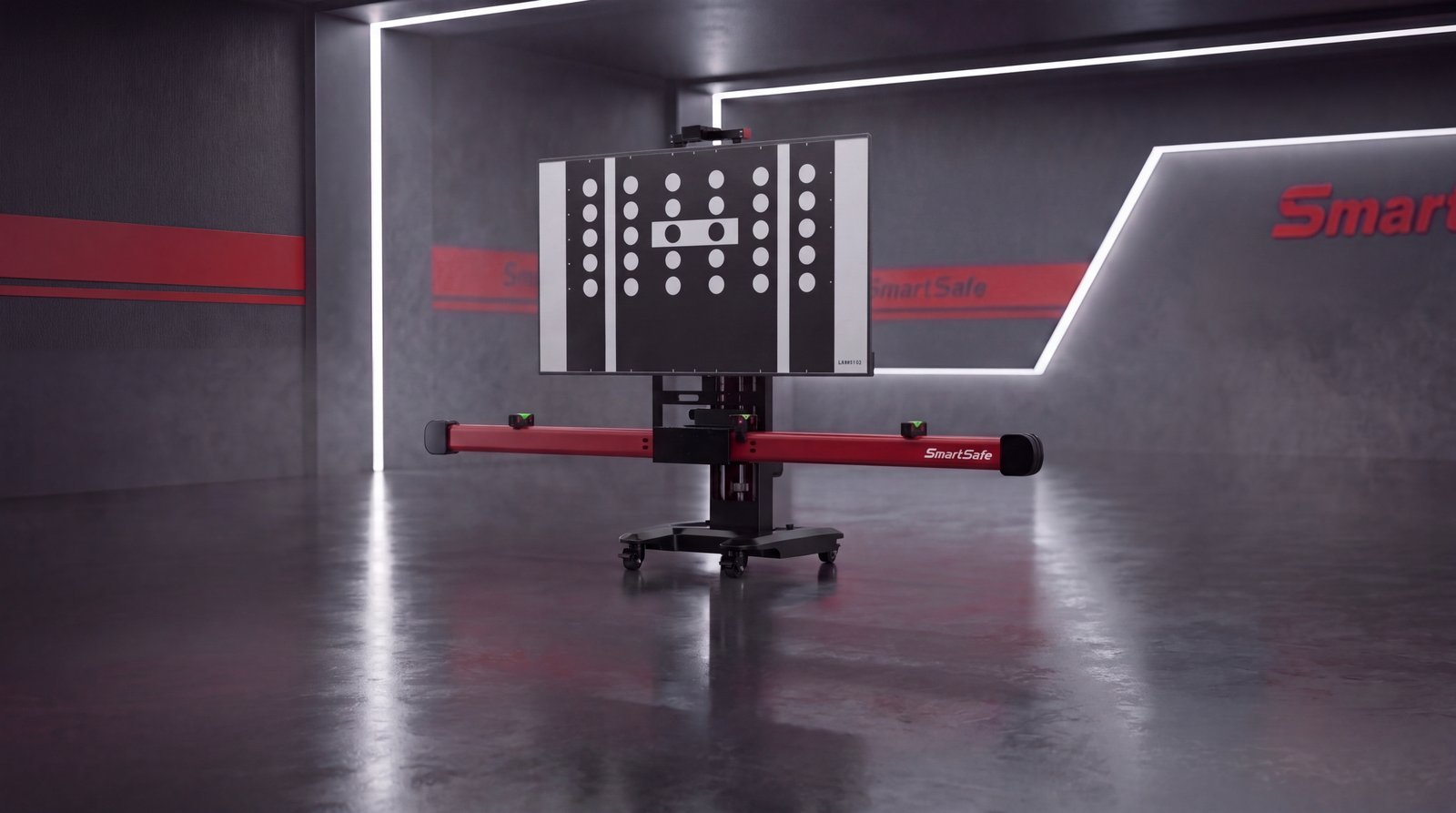

Digital targets
The HD display shows digital targets and alignment data in real time — fewer physical targets, clearer operation.
Bluetooth laser measurement
Automatically captures centering, parallelism and height with no manual input, plus visual dynamic calibration guidance.
Intelligent wireless mirroring
The tablet wirelessly mirrors alignment data to the large display — seamless transfer and a unified interface.
Simplified calibration workflow
Optimized ADAS software with clear steps and visual guidance — shorter learning curve and fewer operator errors.
Extensive vehicle coverage
ADAS calibration and wheel alignment data for over 95% of vehicle models worldwide, with continuous database updates.
Features
- All-in-one: wheel alignment + ADAS calibration on one platform (WA613 V2 + PRO+ V3)
- One-click switch from alignment to ADAS calibration — no repeated setup
- Digital targets on the HD display instead of storing physical targets
- Bluetooth laser measurement of centering, parallelism and crossbar height
- Wireless screen mirroring from the ST13 terminal to a 75″ smart display
- Standard and quick alignment modes (toe, camber, caster, KPI, steering angle…)
- Automatic digital-target switching for faster ADAS calibration
- Database: 50,000+ alignment models · ADAS coverage over 95% of vehicles
- Professional before/after reports with comparison, sharing and archiving
- Visual calibration guidance — shorter learning curve for technicians
Specifications
| Model | WAA613 V2 · ADAS + wheel alignment | Platform | Built on WA613 V2 and ADAS Pro+ V3 | Display | 75″ smart display · digital targets | Toe | ±20° | Camber | ±10° | Caster | ±10° | Kingpin inclination (KPI) | ±20° | Maximum steering angle | ±35° | Wheelbase | 1940–4600 mm | Track width | 1290–1900 mm | Rim diameter (4-point clamp) | 275–640 mm | Tire diameter (3-point clamp) | 470–1100 mm | Vehicle database (alignment) | 50,000+ models | ADAS coverage | Over 95% of vehicle models | Connectivity | Wireless · ST13 terminal · 75″ display | Reports | Comparative · shareable · archive |
|---|
