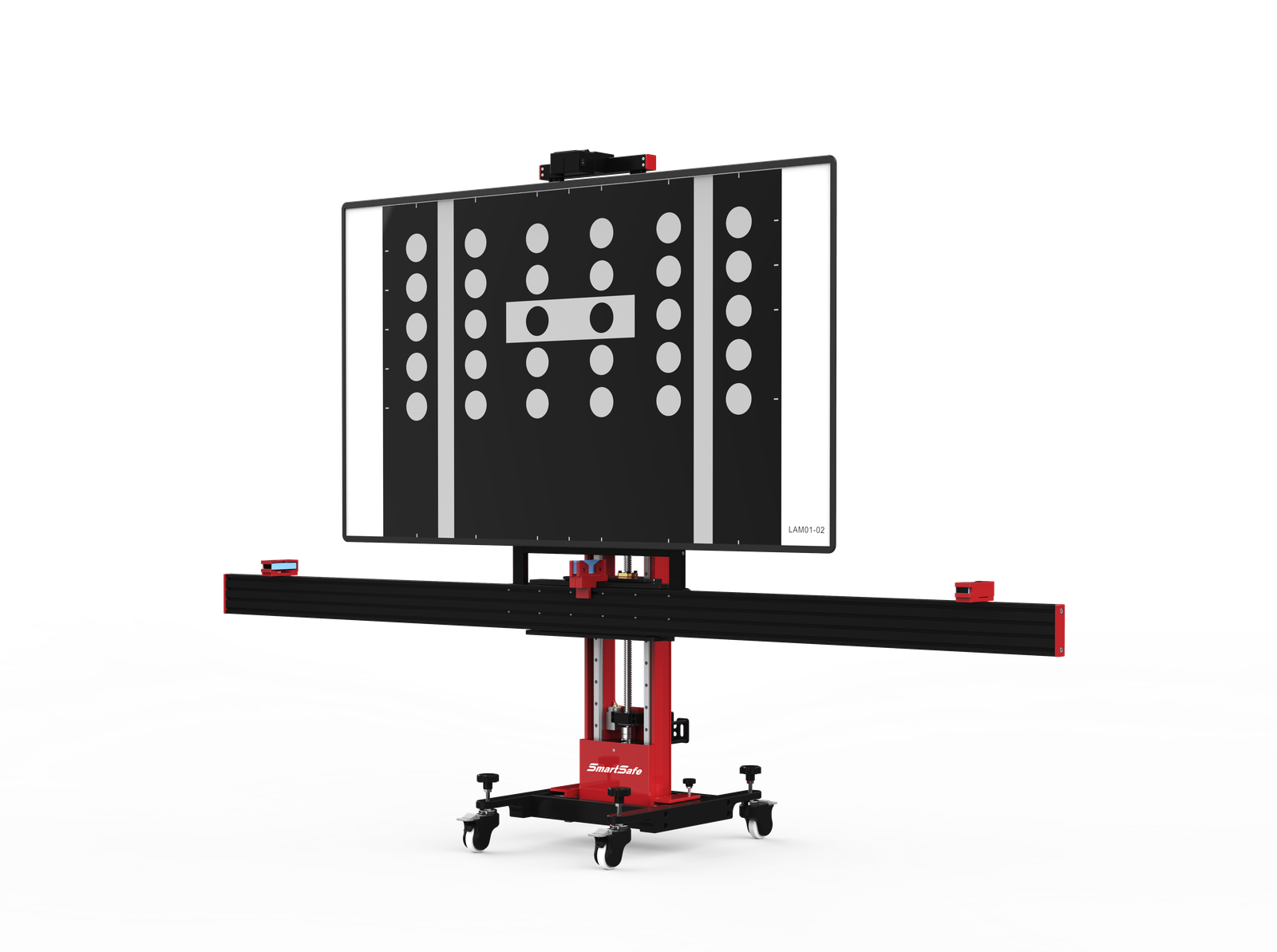

ADAS Pro+ V2 is a professional ADAS calibration station for passenger vehicles, equipped with a 75-inch high-definition LCD screen and a digital display of front camera targets. It is designed for automobile manufacturers, large repair shops and auto glass shops. The digital display of front camera targets eliminates the physical target-head installation steps, greatly improves calibration efficiency, saves target storage space and reduces target maintenance and transportation costs. A millimeter-level laser rangefinder and line laser provide parallel positioning and centering of the device relative to the vehicle in one minute, while the software offers graphic tutorials, step-by-step guidance and before-and-after calibration comparison reports.
Millimeter accuracy with laser positioning
A millimeter-level laser rangefinder provides precise positioning and millimeter-level ADAS calibration accuracy.
Centering and paralleling in one minute
Fine-tuning of horizontal angle, front-back and left-right, electric and manual beam lifting — centering and paralleling in one minute.
75″ LCD screen and digital front camera targets
75-inch high-definition LCD screen, 4K resolution — the digital target restores the physical target at a 1:1 ratio, with no physical target-head installation.
Front camera target digitalization
Supports more than 30 electronic front camera targets — targets are switched on demand, with no physical target storage or transport.
Compatible with the ADAS target series
Compatible with the full calibration target series — LDW, RCW/AVM, radar and NV targets for all SmartSafe ADAS devices.
Guided calibration and reports
Software with graphic tutorials and step-by-step guidance, plus before-and-after calibration comparison reports.
Features
- Professional ADAS calibration station for passenger vehicles, with a 75-inch high-definition LCD screen
- Digital display of front camera targets — eliminates target-head installation, boosts efficiency and saves storage space
- 75-inch LCD screen, 4K resolution — the digital target restores the physical target at a 1:1 ratio
- Supports more than 30 electronic front camera targets (LAM1 series)
- Fine-tuning of horizontal angle, front-back and left-right; electric and manual beam lifting
- Device and vehicle centering and paralleling in one minute
- Millimeter-level laser rangefinder for precise calibration
- Line laser for centering, laser rangefinder for parallel positioning and height positioning
- Manual and electric device elevation, with height positioning via laser rangefinder
- Leveling via bubble level and base knob adjustment
- Software with graphic tutorials and step-by-step guidance
- Before-and-after calibration comparison reports
- Designed for auto manufacturers, large repair shops and auto glass shops
- Compatible with the calibration target series (PRO+ / MOBILE / LITE / ECO)
Specifications
| Model | ADAS Pro+ V2 · professional ADAS calibration station for passenger vehicles |
|---|---|
| Device type | ADAS calibration station with digital target display |
| Designed for | Auto manufacturers, large repair shops, auto glass shops |
| Screen | 75-inch high-definition LCD screen, 4K resolution |
| Digital targets | Digital display of front camera targets — physical target restored at 1:1 ratio |
| Electronic target count | More than 30 electronic front camera targets (LAM1 series) |
| Calibration accuracy | Millimeter-level accuracy |
| Distance measurement | Millimeter-level laser rangefinder |
| Centering | Line laser for centering |
| Beam elevation | Electric and manual, with angle and direction fine-tuning |
| Leveling | Bubble level and adjustable base knob |
| Alignment time | Centering and paralleling in ~1 minute |
| Software | Graphic tutorials and step-by-step guidance |
| Reports | Before-and-after calibration comparison report |
| Target compatibility | PRO+ / MOBILE / LITE / ECO — LDW, RCW/AVM, radar and NV targets |
| Electronic front camera targets | Mercedes LAM1-01 · VW LAM1-02 · Toyota LAM1-03-1/2/3/4 · Nissan LAM1-04-L/R · Hyundai/Kia LAM1-05 · Mazda LAM1-06 · Romeo/Geely LAM1-07 · Nissan/Renault LAM1-08-L/R · Subaru LAM1-09 · Mazda LAM1-10-L/R · Honda LAM1-11 · Suzuki LAM1-12-L/R · Mitsubishi LAM1-13-L/R · Subaru LAM1-14 · Sprinter LAM1-15-L/R · Suzuki LAM1-16 · Daihatsu LAM1-17-L/R · Maserati LAM1-18-L/R · Leapmotor LAM1-19 · Tesla LAM1-20 |
| Accessories | Wheel clamp assembly · center-mounted laser · distance measurement target |
| Certification | CE |
| Documentation | Packing lists · spare parts manual · flyer · calibration targets catalog |
