ADAS Pro+ is an industry-leading professional ADAS system calibration equipment for passenger vehicles, providing professional ADAS calibration solutions for auto manufacturers, large auto repair shops and auto glass shops. A millimeter-level laser rangefinder and line laser ensure accurate distance measurement, height positioning and parallel alignment between the device and the vehicle in about one minute. The system supports calibration of six major ADAS systems — LDW, ACC, AVM, NVS, BSD and RCW — for over 30 vehicle brands from Europe, the Americas, Asia and China, with over 100 target models and coverage of more than 95% of vehicles equipped with ADAS systems worldwide. The software provides graphic tutorials and step-by-step guidance, with before-and-after calibration comparison reports.
Millimeter-level calibration accuracy
Millimeter-level calibration accuracy ensures reliable and precise ADAS system calibration.
Laser measurement & positioning
A millimeter-level laser rangefinder and line laser provide accurate distance, height and parallel-alignment measurement.
Parallel alignment in one minute
Horizontal angle, front-back and left-right fine-tuning, electric and manual beam lifting — centering and paralleling completed in one minute.
Six ADAS systems
Supports calibration of LDW/ACC/AVM/NVS/BSD/RCW systems with graphic tutorials and step-by-step guidance.
Over 95% model coverage
Calibration for over 30 brands from Europe, the Americas, Asia and China, with over 100 target models and continuous database updates.
Compatible with ADAS target series

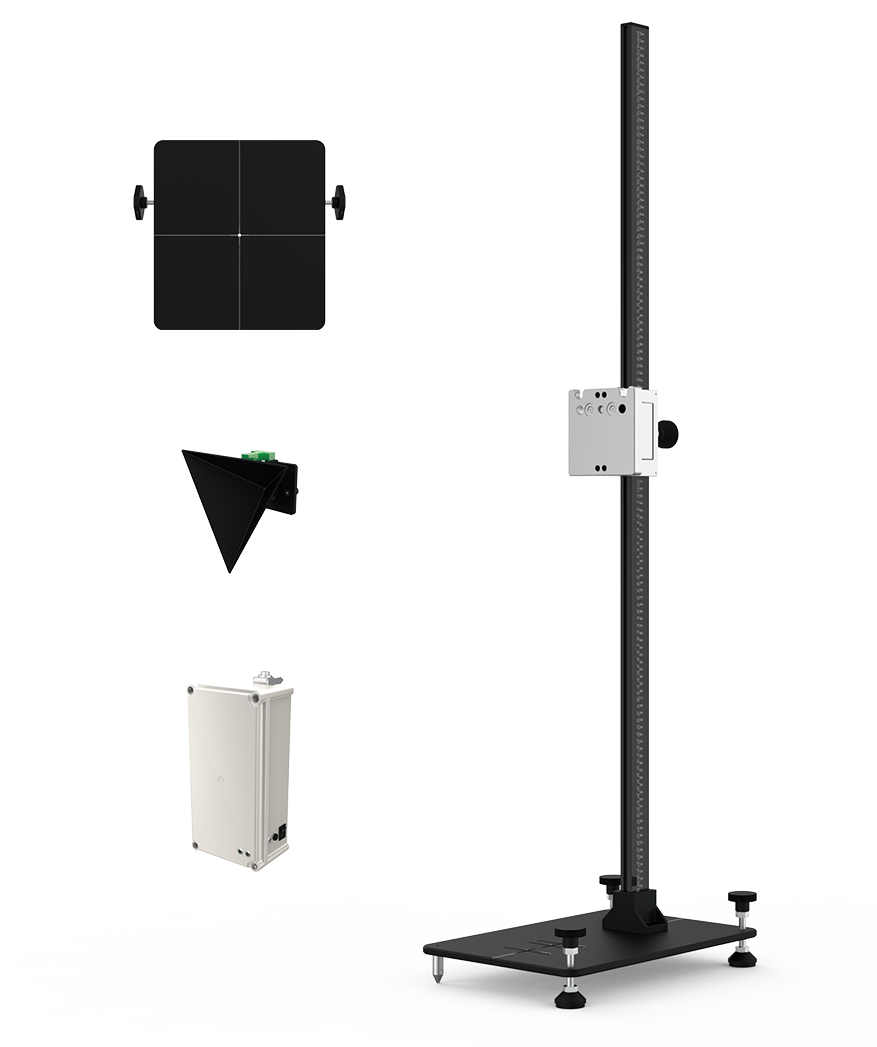

Compatible with the full calibration target series — LDW, RCW/AVM, radar and NV targets for all SmartSafe ADAS devices.
Features
- Professional ADAS system calibration equipment for passenger vehicles
- Designed for auto manufacturers, large repair shops and auto glass shops
- Millimeter-level laser rangefinder for accurate calibration
- Electric and manual beam lifting, with front-back, left-right and angle fine-tuning
- Device centering and paralleling completed in one minute
- Supports calibration of six systems: LDW, ACC, AVM, NVS, BSD, RCW
- Coverage of over 95% of ADAS-equipped vehicles worldwide, with continuous updates
- Over 30 brands from Europe, the Americas, Asia and China, with over 100 target models
- Parallel alignment via laser rangefinder, centering via line laser
- Height positioning via laser rangefinder — manual and electric elevation
- Leveling via bubble level and base knob adjustment
- Software with graphic tutorials and step-by-step guidance
- Before-and-after calibration comparison reports
- Compatible with the calibration target series (PRO+ / MOBILE / LITE / ECO)
Specifications
| Model | ADAS Pro+ · professional passenger-vehicle ADAS calibration equipment |
|---|---|
| Device type | ADAS calibration station for passenger vehicles |
| Designed for | Auto manufacturers, large repair shops, auto glass shops |
| ADAS systems | LDW · ACC · AVM · NVS · BSD · RCW |
| Vehicle coverage | Over 95% of ADAS-equipped models worldwide |
| Vehicle brands | Over 30 brands — Europe, Americas, Asia, China |
| Target models | Over 100 target models |
| Calibration accuracy | Millimeter-level accuracy |
| Distance measurement | Millimeter-level laser rangefinder |
| Centering | Line laser for centering |
| Beam elevation | Electric and manual, with angle and direction fine-tuning |
| Leveling | Bubble level and adjustable base knob |
| Alignment time | Centering and paralleling in ~1 minute |
| Software | Graphic tutorials and step-by-step guidance |
| Reports | Before-and-after calibration comparison report |
| Target compatibility | PRO+ / MOBILE / LITE / ECO — LDW, RCW/AVM, radar and NV targets |
| Coverage — Europe | Mercedes-Benz, BMW, Audi, VW, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroën, Smart, MINI, Peugeot, Porsche, Maserati… |
| Coverage — Asia | Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda… |
| Coverage — Americas | GM, Ford, Chrysler, Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, Tesla… |
| Accessories | Wheel clamp assembly · center-mounted laser · distance measurement target |
| Certification | CE |
| Documentation | User manual · CE certificate · packing list · spare parts list · flyer · introduction |
