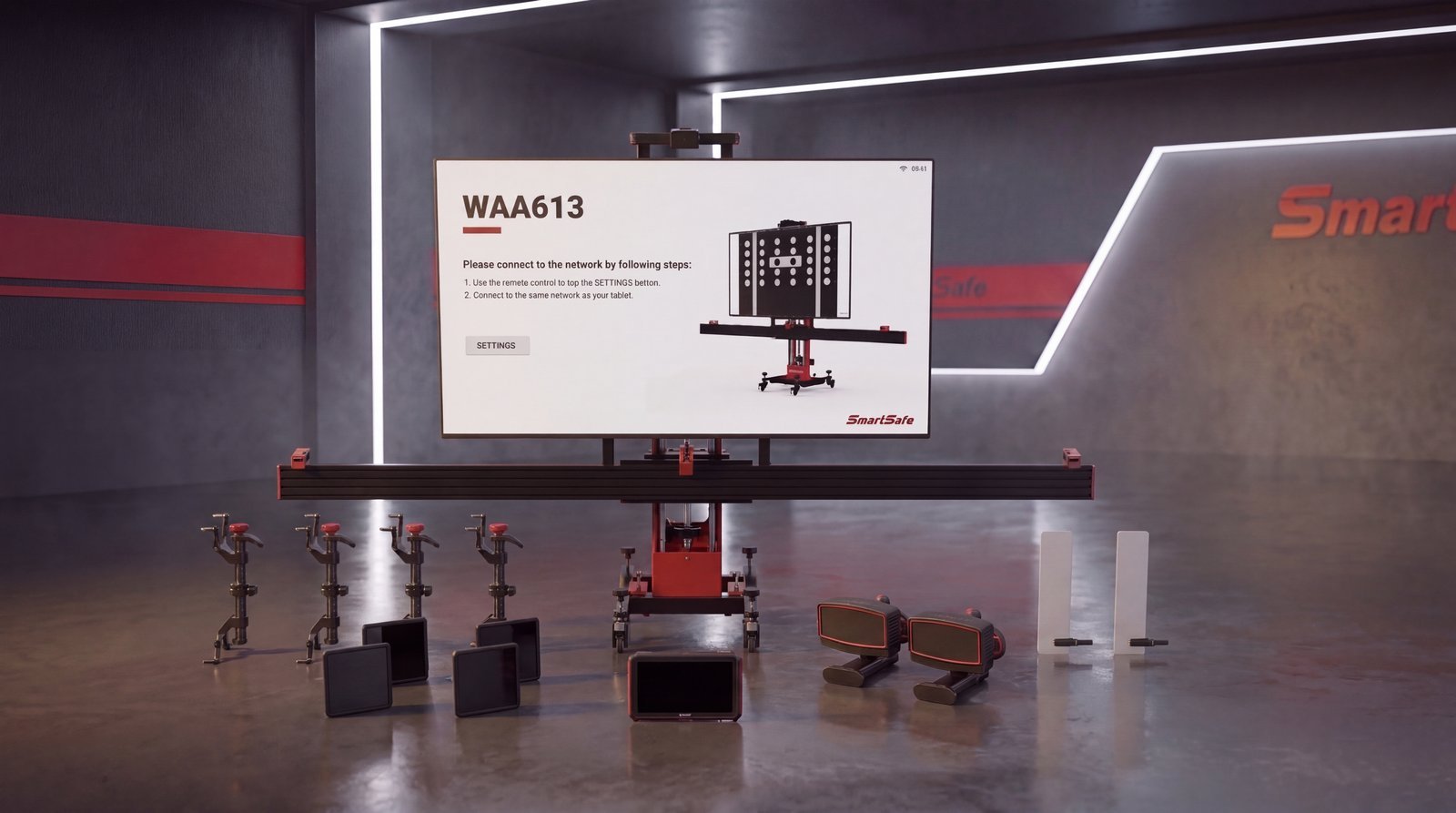

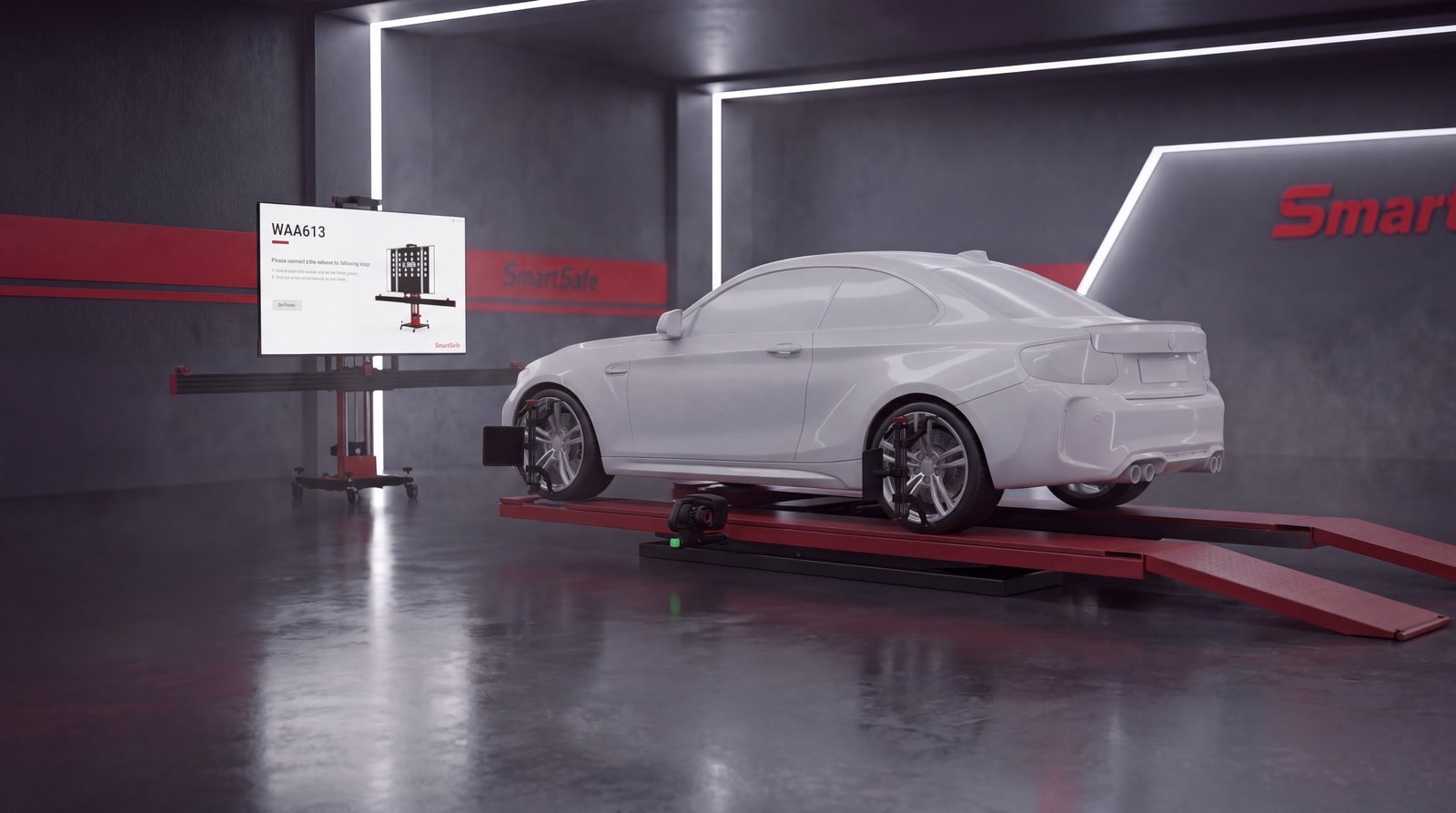

WAA613 is the world’s first all-in-one device that deeply integrates wireless 3D wheel alignment with intelligent ADAS calibration. A large 75″ screen digitally displays the target and wheel alignment information, comprehensively improving maintenance efficiency and accuracy. Switching from wheel alignment to ADAS calibration takes one click — with no re-setup, no physical targets and no extra space.
Integrated workflow
Switch from wheel alignment to ADAS calibration with one click — no repeated setup or re-measurement.

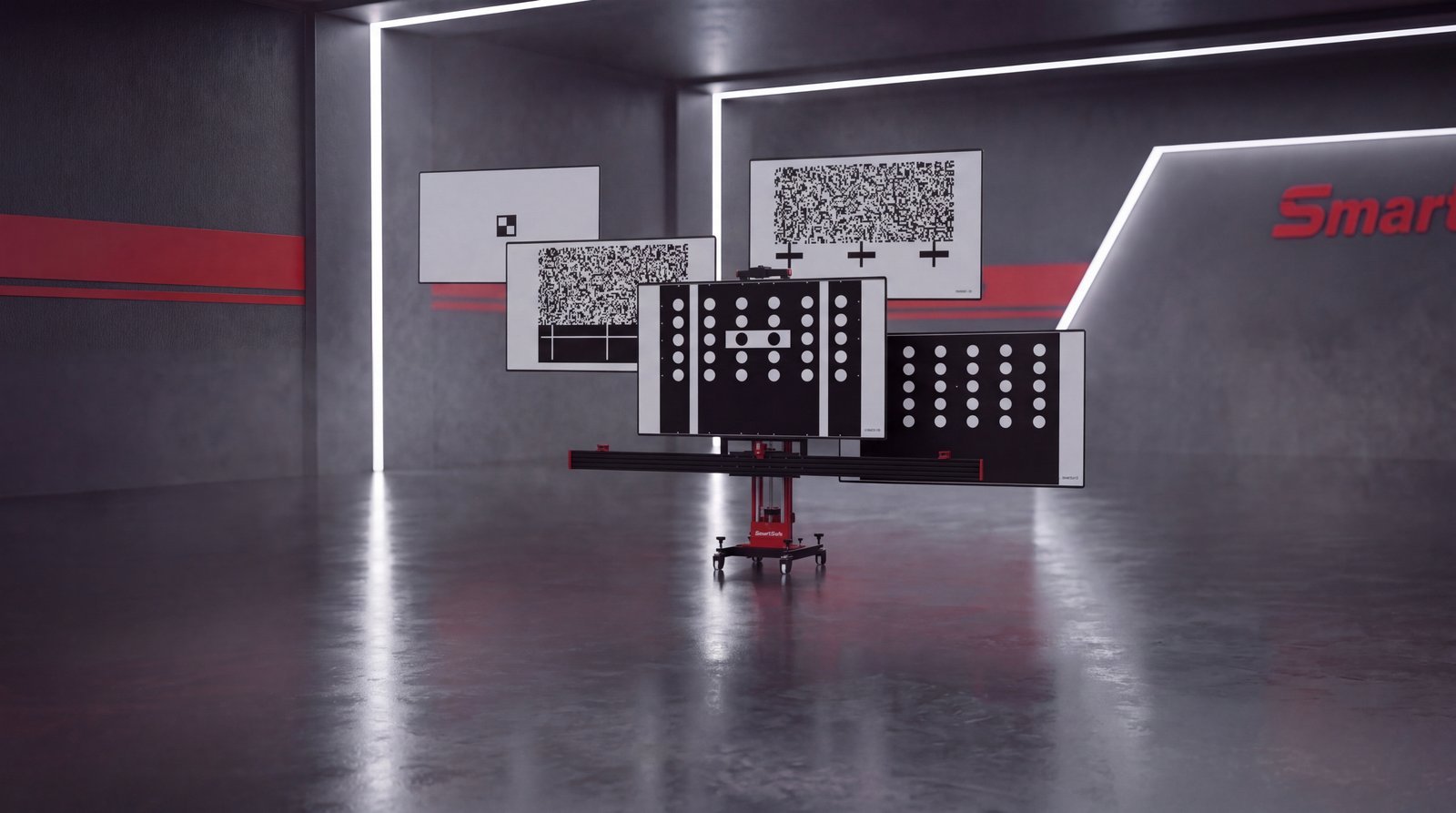

Digital targets
The HD large screen shows targets and alignment data in real time — no physical targets to install or store, saving space.
Bluetooth laser measurement
Automatically captures centering, parallelism and height with no manual input, plus visual dynamic calibration guidance.
Intelligent screen projection
The ST13 terminal wirelessly projects alignment data to the 75″ screen — a unified interface and clear workflow.
Simplified calibration
Optimized ADAS software with clear steps and illustrated guidance — shorter training and fewer operator errors.
Extensive vehicle coverage
Alignment data for over 50,000 models and ADAS calibration for over 95% of vehicles worldwide, with continuous updates.
Features
- All-in-one: wireless 3D wheel alignment + intelligent ADAS calibration on one platform
- Alignment measurement: standard and quick modes — toe-in, camber, caster, kingpin inclination, thrust angle
- Additional measurements: wheelbase, track width, axle offset, wheel offset, diagonal, center offset
- Intelligent ADAS calibration: digital targets switch automatically — no physical target installation or storage
- Centering, parallelism and height: laser auto-aligns centering and parallelism, beam height auto-detected and adjusted
- Manual/electric lifting with bubble level for leveling; ST13 terminal wirelessly projects to the 75″ screen
- Vehicle database: over 50,000 alignment models and over 95% of ADAS vehicles, user-customizable, continuously updated
- Professional test reports with before/after comparison and electronic sharing and archiving
- One-click switch from alignment to ADAS calibration — no repeated setup
- Wireless screen mirroring from the ST13 terminal to a 75″ smart display (3840×2160, 2160p)
Specifications
| Model | WAA613 · Wheel Alignment with ADAS Calibration |
|---|---|
| Type | All-in-one 3D wheel alignment + ADAS calibration |
| Toe | ±20° |
| Camber | ±10° |
| Caster | ±10° |
| Kingpin inclination (KPI) | ±20° |
| Maximum steering angle | ±35° |
| Wheelbase | 1940–4600 mm |
| Track width | 1290–1900 mm |
| Rim diameter (4-point clamp) | 275–640 mm |
| Tire diameter (3-point clamp) | 470–1100 mm |
| Screen size / ratio | 75 inches · 16:9 widescreen |
| Resolution | 3840 × 2160 |
| Clarity | 2160p |
| Operating system | Android |
| Network connection | Wi-Fi |
| Memory | 1.5G + 8G |
| Power supply | 110–240 V |
| Overall power | 138 W |
| Standby power | < 0.5 W |
| Vehicle database (alignment) | Over 50,000 models |
| ADAS coverage | Over 95% of vehicles |
| Connectivity | Wireless · ST13 terminal · 75″ display |
| Reports | Before/after · shareable · archive |
