Asian v2 target kit
A dedicated camera-calibration target set for selected Asian vehicle applications. The Asian v2 configuration brings together nine article entries, identified by their LAC target codes.
Targets in this configuration

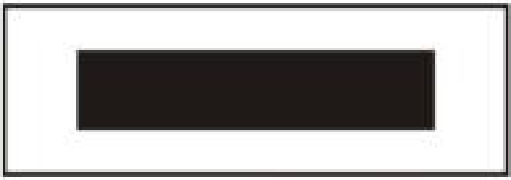

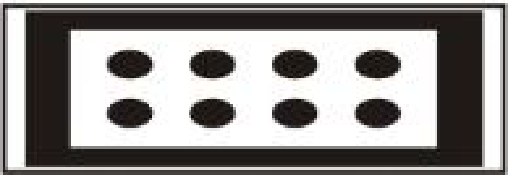

Honda / Acura
Surround-view calibration (AVM)
Article number 602020260

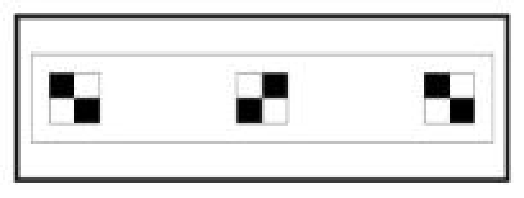

Nissan
Camera calibration
Article number 602020261

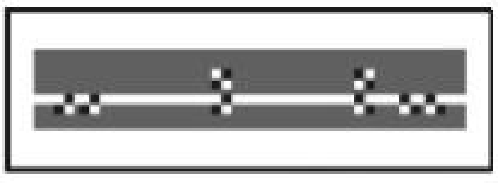

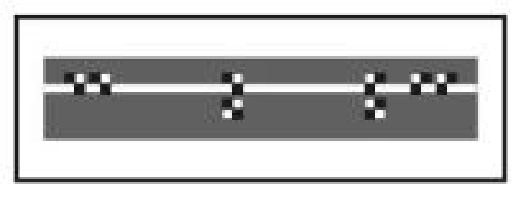

Hyundai
Surround-view calibration (AVM)
Article number 602020262

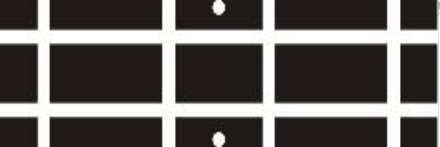

Mitsubishi
Surround-view calibration (AVM)
Article number 602020263
Nissan
Rear-camera calibration
Article number 701010078
Toyota
Surround-view calibration (AVM)
Article number 701010103
LAC04-16 target group, shown with its four patterns: LAC04-16-1, -2, -3 and -4.

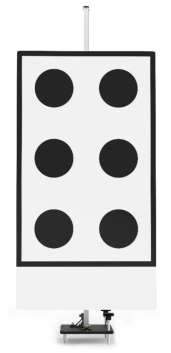

Honda
Honda LaneWatch camera calibration
Article number 701010117
Nissan
Rear-camera calibration
Article number 701010110
Toyota
Rear-camera calibration
Article number 701010111
Original SmartSafe target illustrations.

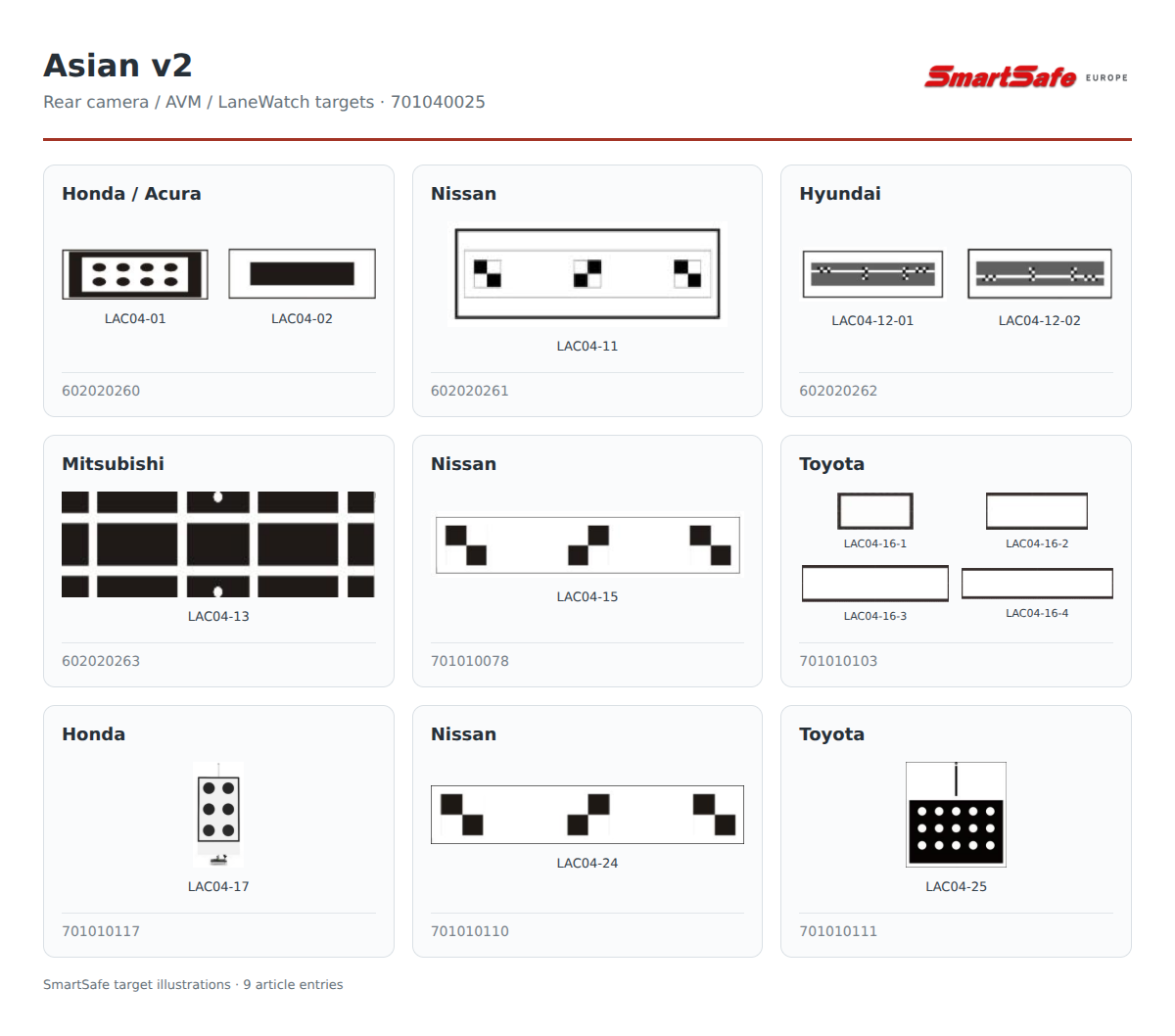

Configuration overview
| # | Vehicle brand | Target code | Article number |
|---|---|---|---|
| 01 | Honda / Acura | LAC04-01 LAC04-02 |
602020260 |
| 02 | Nissan | LAC04-11 | 602020261 |
| 03 | Hyundai | LAC04-12-01 LAC04-12-02 |
602020262 |
| 04 | Mitsubishi | LAC04-13 | 602020263 |
| 05 | Nissan | LAC04-15 | 701010078 |
| 06 | Toyota | LAC04-16-1 LAC04-16-2 LAC04-16-3 LAC04-16-4 |
701010103 |
| 07 | Honda | LAC04-17 | 701010117 |
| 08 | Nissan | LAC04-24 | 701010110 |
| 09 | Toyota | LAC04-25 | 701010111 |
Selecting the correct target
Match the vehicle, camera system and LAC code to the procedure in your compatible ADAS diagnostic software. Positioning and distances depend on that procedure. The targets are used with suitable diagnostic equipment and calibration software.
This configuration covers the rear-camera, AVM and LaneWatch targets listed here. Select the target by its LAC code and the procedure for the specific vehicle.
