EV battery-pack charge and discharge service.

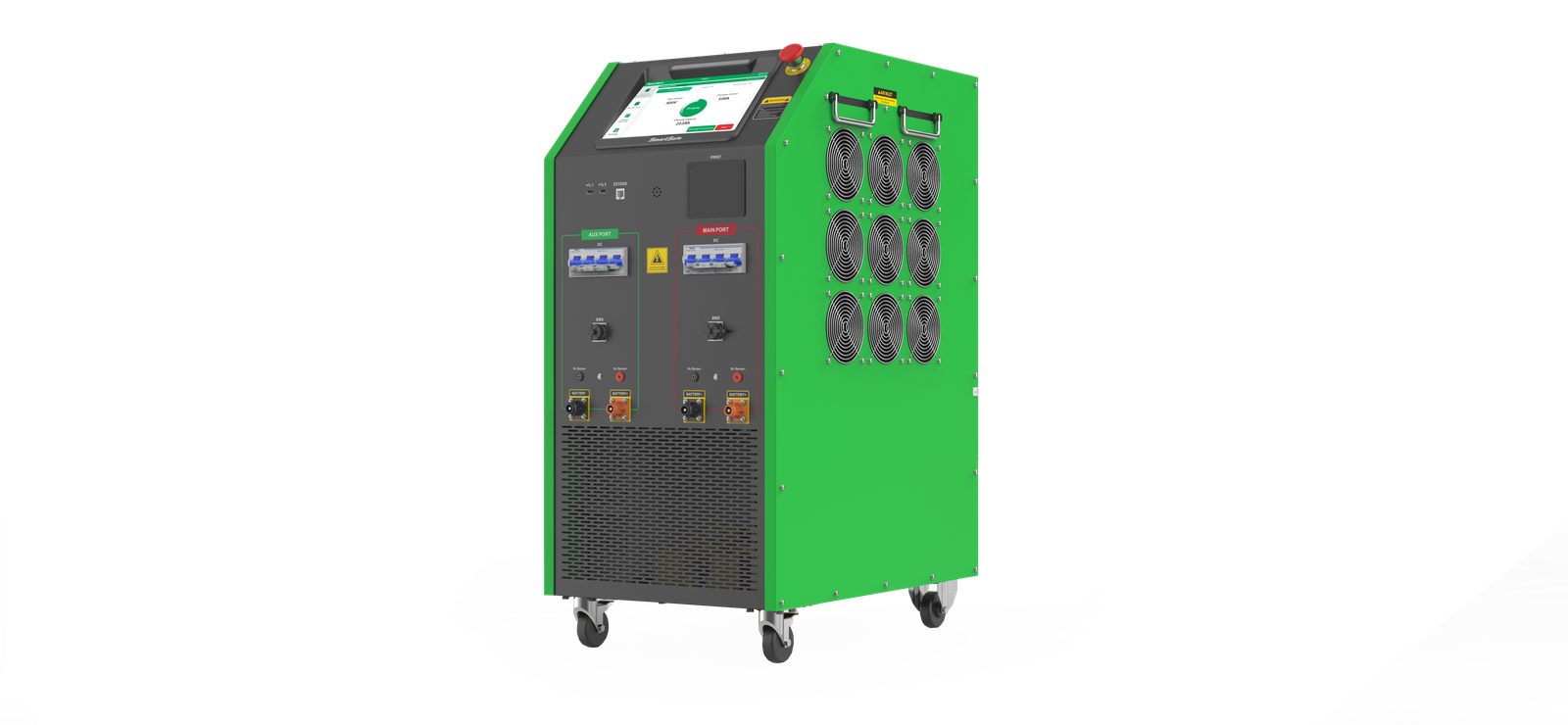

EP865 is designed for service charging and discharging of a complete EV battery pack or a compatible vehicle. It provides BMS data, process curves and protection throughout the procedure.
Key benefits
Whole-pack work
Service charging, discharging and capacity tracking.
BMS monitoring
View supported voltage, current and temperature data.
Connection options
Operate through matching battery or vehicle connections.
Workshop functions
Whole-pack service
Work up to 100 A and 30 kW within specified charge/discharge ranges while tracking capacity.
BMS and cell data
With a compatible protocol, read SOC, voltage, current, temperature and individual cell status.
Vehicle connection
A compatible fast-charge connector enables service or support charging; check connector and protocol availability for each market.
Energy transfer
Supported configurations offer B2B and B2V modes for transferring energy between batteries or to a vehicle.
Traces and records
See voltage/current curves on screen; process records and report export support later analysis.
Safety monitoring
Monitor polarity, temperature, short circuit, leakage, phase loss, out-of-range voltage/current and unit tilt.
Technical specifications
| Parameter | Value |
|---|---|
| Charge voltage | 150–1000 V DC |
| Discharge voltage | 200–865 V DC |
| Maximum current | 100 A |
| Maximum power | 30 kW |
| Voltage accuracy | ±0.5% FS |
| Current accuracy | ±1% FS |
| Power input | AC 220 / 380 V · 50/60 Hz |
| Display | 10 in / 1280 × 800 |
| Storage | 32 GB |
| Communication | CAN · RS485 · Wi-Fi · Bluetooth |
Before use
Verify BMS and fast-charge compatibility for the specific vehicle, connector, software and local standard.
