SMARTSAFE · EV EQUIPMENT
Multi-channel lithium EV battery-cell balancing.

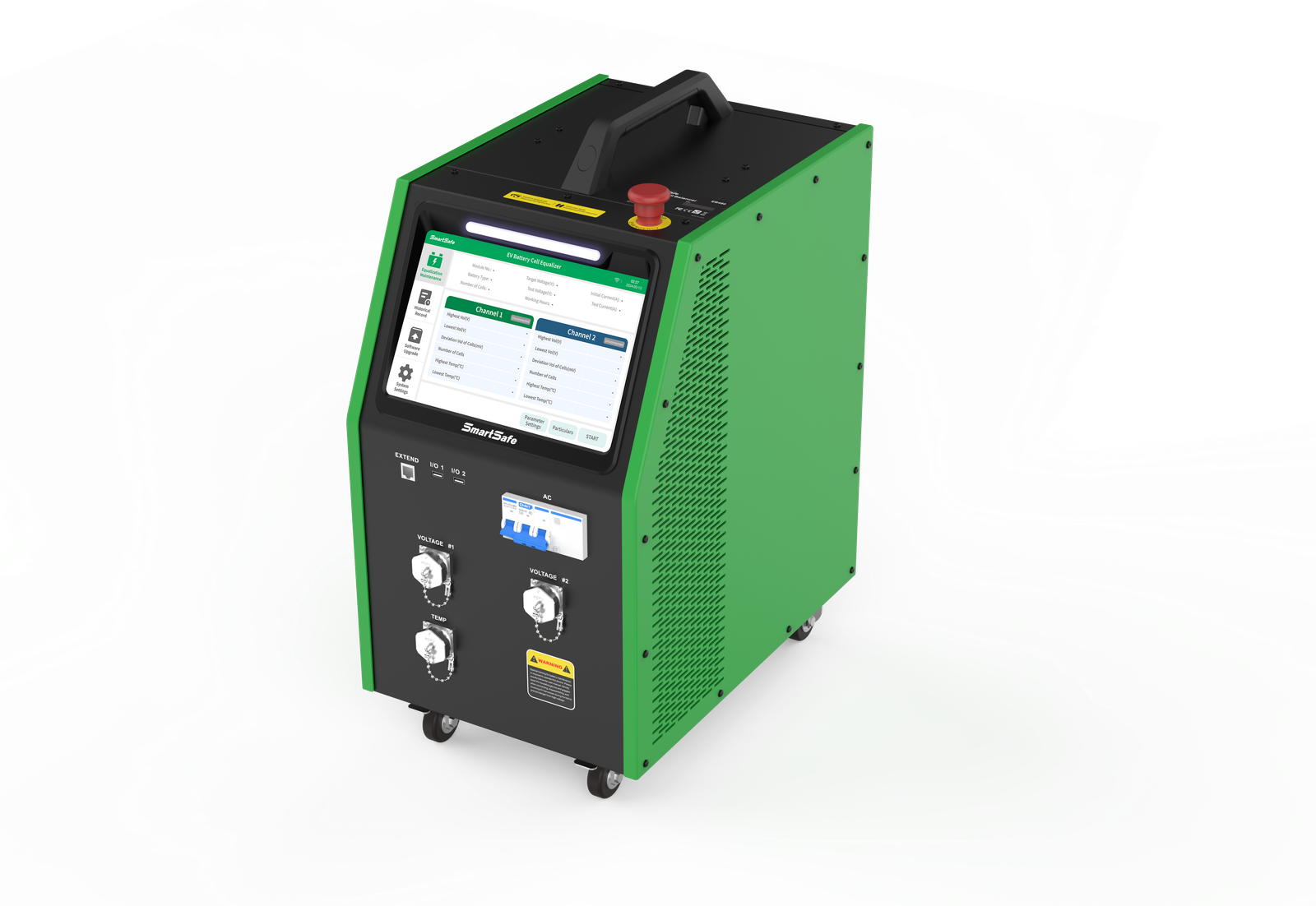

EB480 is a multi-channel system for controlled equalization of lithium cells. It follows each cell’s voltage, current and progress separately and saves data for later comparison.
Key benefits
Individual cells
Independent cell monitoring and balancing.
Lithium chemistries
Supports common lithium chemistries according to settings.
Process history
Graphs, tables and USB export.
Workshop functions
Three operating modes
Charge, discharge and balance compatible ternary, LFP, LTO and lithium-manganese cells.
Independent cells
Channels control cells independently so each can be monitored against its own voltage and current.
Set the limits
Set chemistry, mode, cell count, voltage thresholds and current; protective circuits track limit breaches.
Graphical display
The screen displays voltage, current, capacity and cell state; review logs as curves and bar charts.
Export history
Export saved results as an Excel file to a USB drive.
Technical specifications
| Parameter | Value |
|---|---|
| Channels in maker specification | 4 × 12 |
| Cell voltage | 1.8–4.5 V |
| Cell current | 0.1–5 A max |
| Maximum power | 1200 W |
| Voltage accuracy | ±0.1% FS ±2 mV |
| Current accuracy | ±1% FS ±0.05 A |
| Temperature accuracy | ±2 °C (−25–85 °C) |
| Display | 7 in / 800 × 480 |
| Power input | AC 90–264 V / 40–60 Hz |
| Interfaces | SMA · USB Device |
| Communication | Wi-Fi (external antenna) |
| Balancing connectors | 26-pin × 2 |
| Temperature connector | 24-pin |
Before use
The number of cells connected simultaneously depends on the delivered unit and leads; confirm before use.
