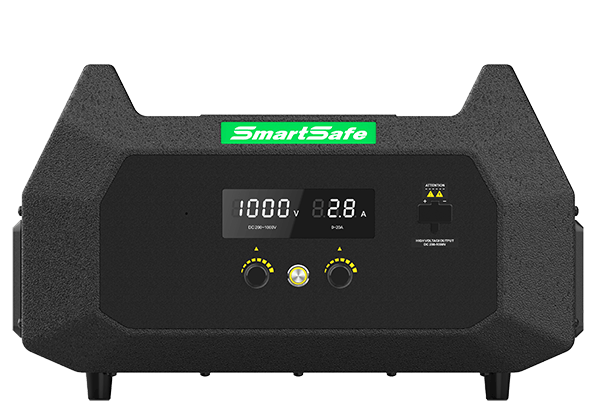

DP901 V2.0 is an intelligent digital power supply unit designed for servicing new energy vehicles. It covers a wide voltage range from 200V to 1000V with maximum power up to 7 kW and current up to 20A, making it suitable for powering high-voltage components during diagnostics and service. The device pairs with the P01 remote unit for safe and convenient control of current, voltage and start/stop commands over Bluetooth, and supports storing three sets of preset parameters. Comprehensive input and output protection guards against overvoltage, undervoltage, overcurrent, short-circuit and overheating.
Wide voltage and high power
Covers EV service applications from 200–1000V with output power up to 7 kW.
Remote safe control
Pairs with the P01 remote unit for safe control of current, voltage and start/stop.
Integrated diagnostics
Works with compatible diagnostic tools — reads fault codes and live data while powering high-voltage components.
Features
- Voltage range DC 200–1000V (knob-adjustable)
- Maximum power 7000W, current 0–20A (knob-adjustable)
- Power input AC 100–240V @ 32A
- Bluetooth remote control via the P01 handheld terminal
- Stores three sets of preset parameters
- Input protection: overvoltage and undervoltage
- Output protection: current limiting, short-circuit, undervoltage, overvoltage, temperature, reverse
- Insulation impedance >20 MΩ (input-output, input-ground, output-ground)
- Dielectric strength 2500Vac/1Min (input-output)
Specifications
Power inputAC 100–240V @ 32AMax power7000WChannel count1Voltage rangeDC 200–1000V (adjustable)Current range0–20A (adjustable)Voltage sampling accuracy0.1VCurrent sampling accuracy0.1AInput protectionOvervoltage / undervoltageOutput protectionCurrent limiting, short-circuit, undervoltage, overvoltage, temperature, reverseInsulation impedance>20 MΩ (input-output, input-ground, output-ground)Dielectric strengthInput-output: 2500Vac/1Min, ≤3.5mA
