Integrated EV and battery pack diagnostics.

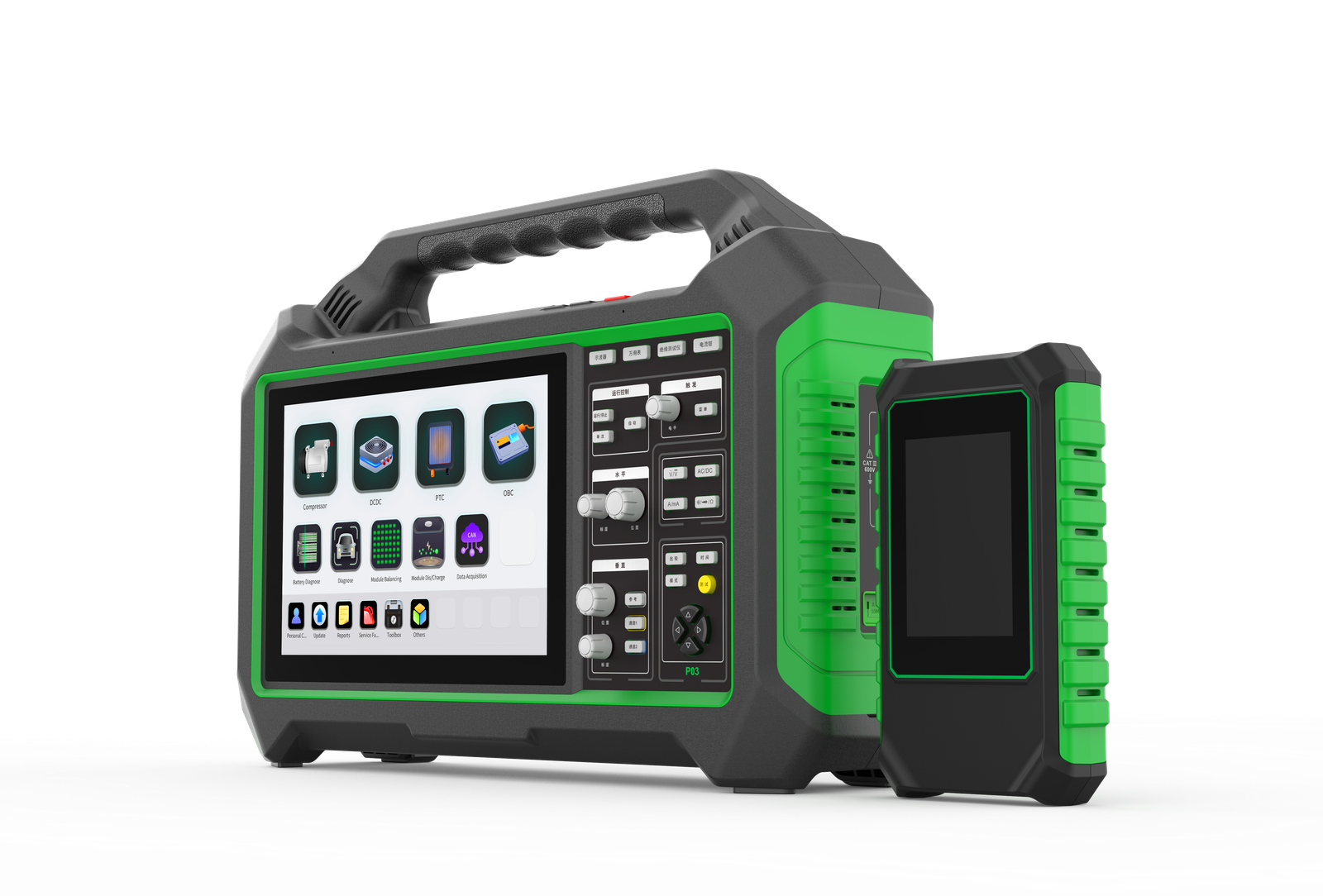

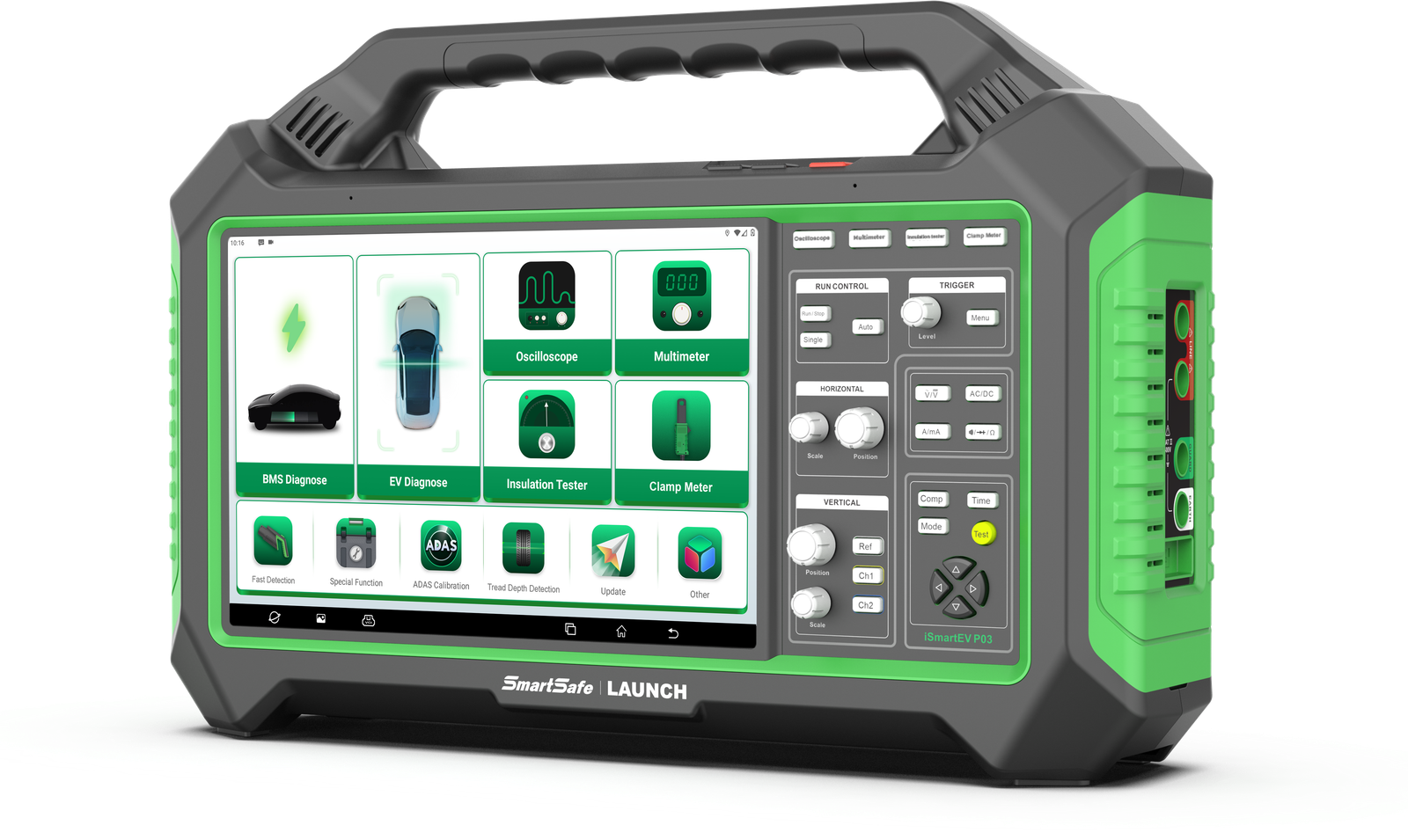

P03 is a service terminal for EV and battery-pack diagnostics. It brings BMS data, vehicle diagnostics and compatible measuring modules into one inspection workflow.
Key benefits
Battery data
SOC/SOH, cell and module voltages, temperatures and faults on supported systems.
Vehicle and topology
Fault codes, live data and vehicle network topology.
Extensions
ADAS and measuring modules depend on compatibility and selected equipment.
Workshop functions
Battery inspection
On supported vehicles read SOC/SOH, cell and module voltages, temperature, faults and the spread between the highest and lowest cell voltage.
Vehicle systems
Read/clear faults, view live values, run actuation tests and service functions. Network topology helps locate communication faults.
Battery connection paths
Supported paths include OBD, dedicated connectors, adapted leads and a compatible fast-charge interface. Required accessories vary by vehicle.
Component tests
A supported configuration enables tests of DC/DC converters, OBC chargers, A/C compressors and 48 V system components.
Measuring extensions

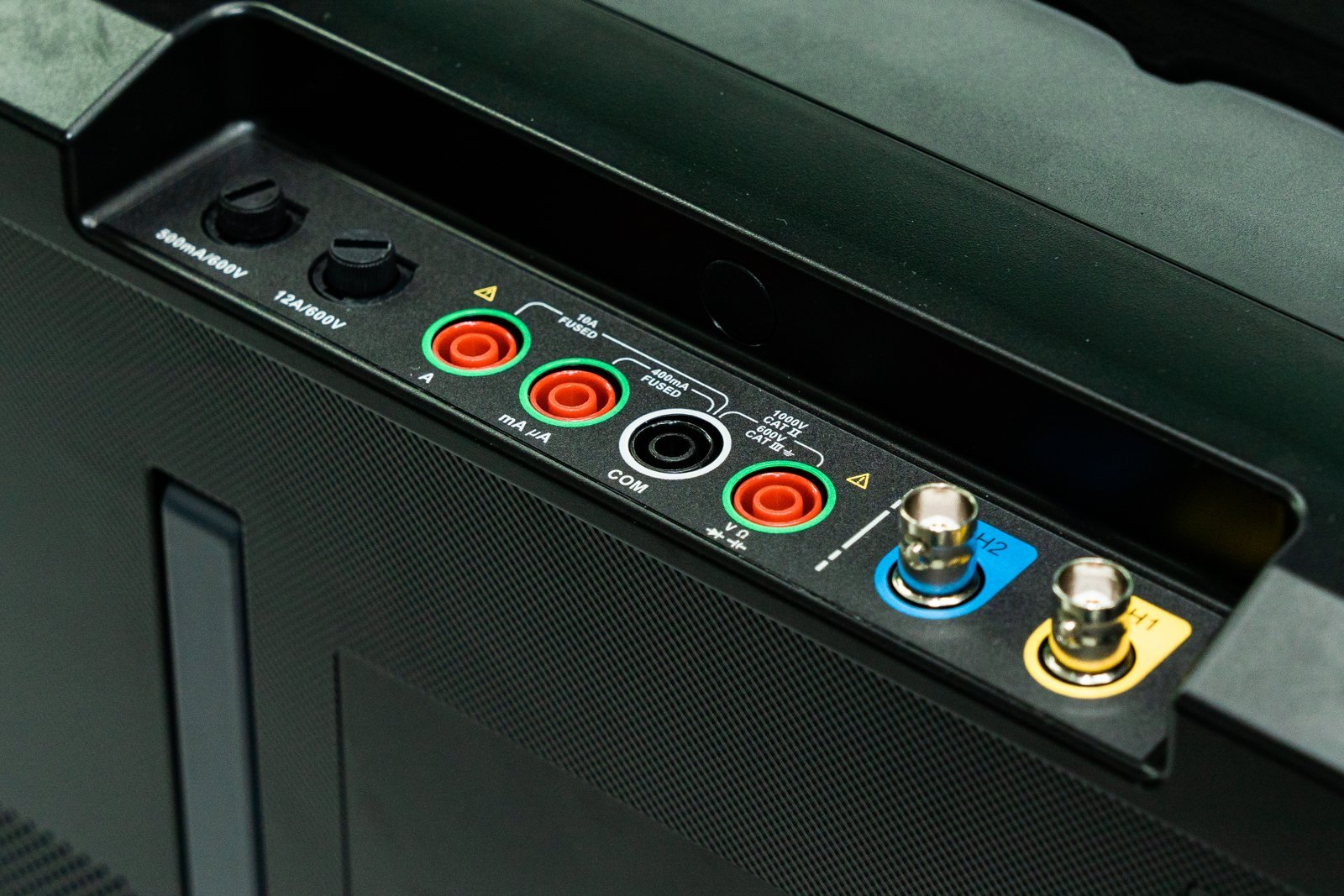

Compatible accessories add oscilloscope, multimeter, clamp meter, insulation testing, borescope, tread measurement and ADAS calibration.
Reports and updates
Separate battery, vehicle and ADAS reports; vehicle software, applications and firmware update online.
Technical specifications
| Parameter | Value |
|---|---|
| Tablet display | 10.1 in / 1920 × 1200 |
| Tablet CPU | 2.0 GHz |
| Tablet RAM | 8 GB |
| Tablet storage | 256 GB |
| Tablet battery | 18 720 mAh / 3.7 V |
| Rear camera | 13 MP |
| Tablet communication | Wi-Fi 2.4/5 GHz · Bluetooth · USB |
| VCI supply | 9–36 V DC |
| VCI CPU | Cortex-A7 + Cortex-M7 |
| VCI RAM | 256 MB |
| VCI storage | 8 GB |
| VCI communication | Wi-Fi · Bluetooth · USB |
| VCI interfaces | USB Type-B · OBD-II 16 · DC-IN |
| VCI dimensions | 197 × 40 × 83 mm |
Before use
Functions, vehicle/ADAS coverage and modules depend on software version, licence and accessories; extensions are not automatically included.
