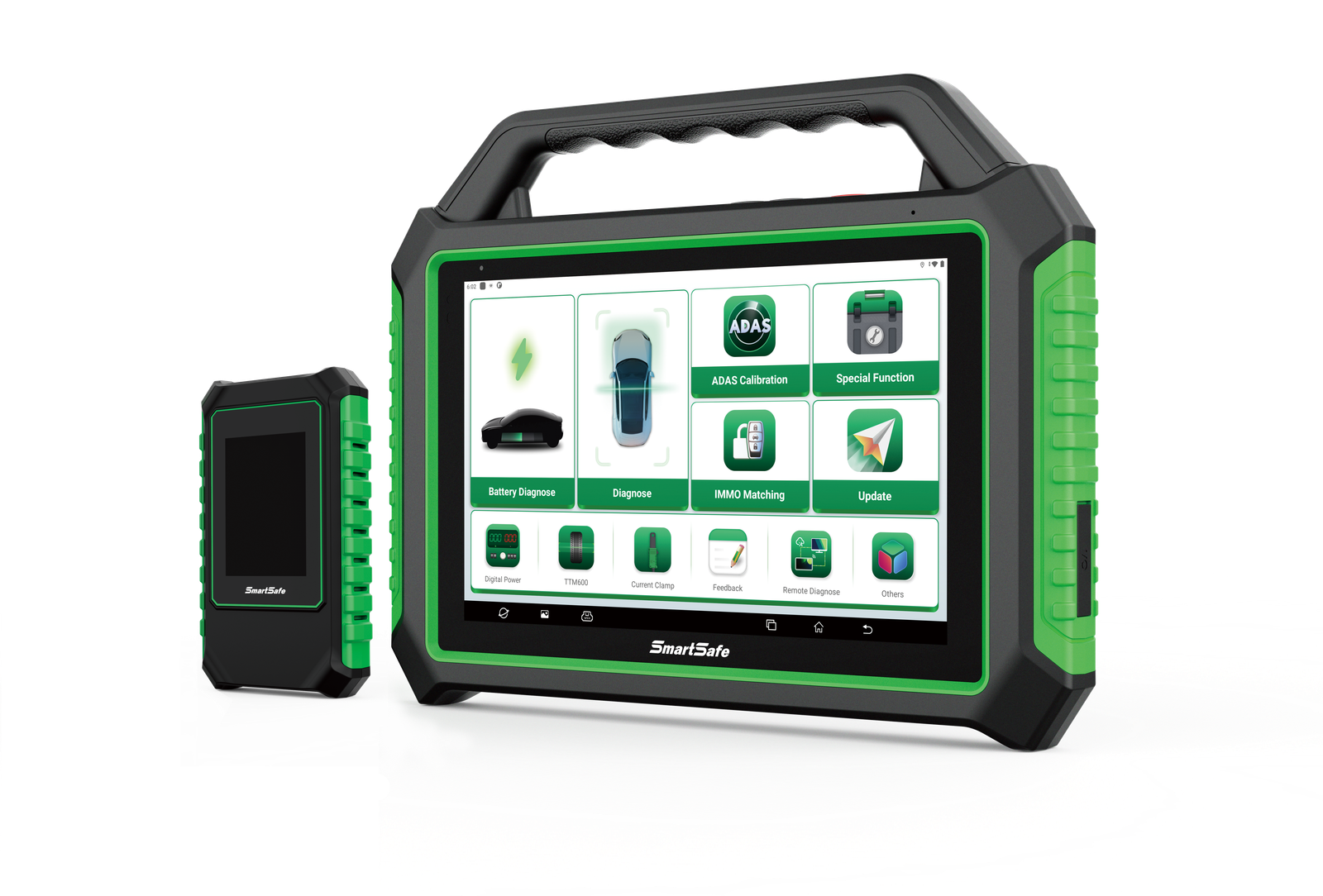

SmartSafe P01 brings battery-pack testing and vehicle-system diagnosis together on a 10.1-inch tablet. It reads battery condition and cell data, performs diagnostic and maintenance functions, and organizes reports by test type. Four battery connection methods and support for compatible measurement and calibration equipment extend its use across EV service tasks.
Available functions depend on the vehicle and software coverage. ADAS calibration and expansion measurements require the corresponding compatible hardware; the equipment package is specified separately.
Battery-pack analysis
Read SOC/SOH, cell and module voltages, temperatures, faults and battery status, with automatic highlighting of abnormal values.
Four connection methods
OBD, dedicated adapters, jumper connections and a compatible fast-charging-port tester.
Full-system vehicle diagnostics
Read and clear fault codes, inspect live data, run actuation tests and use supported special functions.
Independent Wi-Fi connections
The tablet can maintain internet access while communicating with the VCI.
ADAS support
Works with compatible ADAS PRO+, ADAS MOBILE, ADAS LITE and ADAS RADAR 3IN1 equipment.
Expandable measurement tools
Support for insulation testing, oscilloscope, multimeter, digital power supply, current clamp, tread inspection and videoscope modules.
Functions
- Battery-pack testing for supported passenger vehicles, commercial vehicles and battery brands.
- Read SOC/SOH, cell/module voltages and temperatures; calculate total voltage, voltage differences and highest/lowest values.
- Full-system diagnostics with fault codes, live data, actuation tests and special functions.
- Battery data reading through the fast-charging port using a compatible tester connected by Bluetooth.
- Offline testing of supported DC-DC converters, on-board chargers (OBC), PTC/A/C components and 48 V mild-hybrid components.
- More than 30 common maintenance and special functions, subject to vehicle coverage.
- ADAS calibration using compatible calibration equipment and supported software.
- Categorized battery, vehicle diagnostic and ADAS test reports.
- Continuous coverage updates; the manufacturer states coverage of over 95% of new energy vehicle models.
Technical data
| Display | 10.1 inches, 1920 × 1200 px |
|---|---|
| Processor | 2.0 GHz, octa-core |
| RAM | 4 GB |
| Storage | 128 GB |
| Operating system | Android |
| Wi-Fi | 2.4 / 5 GHz; independent tablet and VCI connections |
| Cameras | Front 8 MP / rear 13 MP |
| Battery | 9360 mAh / 3.8 V |
| Interfaces | Type-A / Type-C |
| Communication | Wi-Fi / Bluetooth / USB |
