SMARTSAFE · EV EQUIPMENT
Equalization of up to 24 EV battery-module cells.

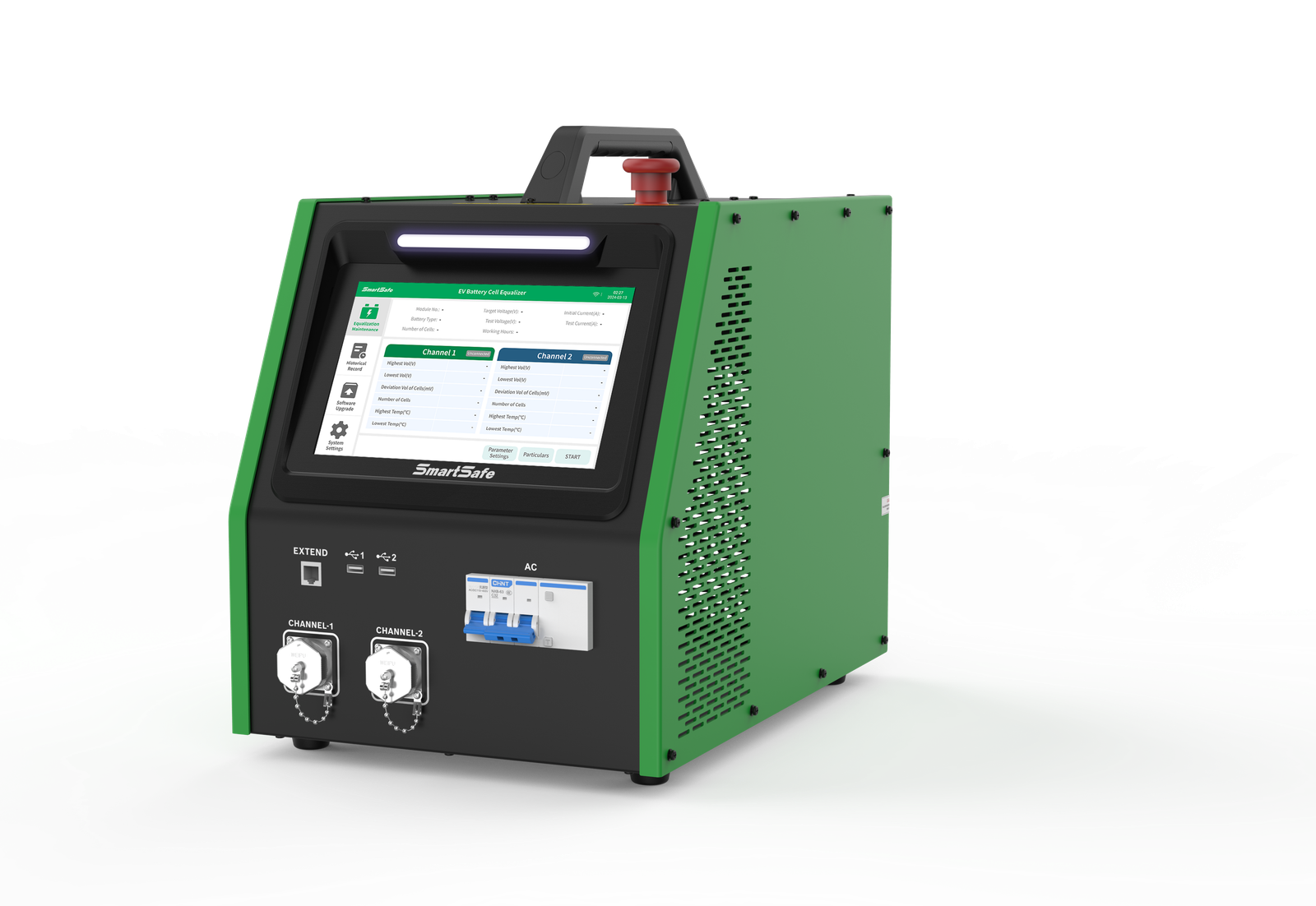

EB240 charges, discharges and balances up to 24 cells in a compatible lithium module. It monitors cells separately, saves history and exports results.
Key benefits
Up to 24 cells
Separate cell-balancing channels.
Working modes
Charge, discharge and balancing.
Process data
Review cells and export history.
Workshop functions
Up to 24 cells
Two groups of 12 channels allow simultaneous equalization of compatible modules.
Battery chemistries
Compatible ternary lithium, LiFePO₄, lithium titanate and lithium manganese cells are supported with proper settings.
Individual-cell service
Individual channels monitor and control charge/discharge to reduce cell voltage differences.
Configure the process
Set operating mode, cell type, series count, target current and allowed voltage thresholds.
Graphs and export
Follow voltage, current and capacity, save results and export an Excel file to USB.
Protective monitoring
Monitor overvoltage, undervoltage, overcurrent, reverse polarity, short circuit and temperature.
Technical specifications
| Parameter | Value |
|---|---|
| Equalization channels | 2 × 12 |
| Cell voltage | 1.8–4.2 V |
| Cell current | 0.1–5 A max |
| Maximum power | 600 W |
| Voltage accuracy | ±0.1% FS ±2 mV |
| Current accuracy | ±1% FS ±0.05 A |
| Temperature accuracy | ±2 °C (−25–85 °C) |
| Display | 7 in / 1024 × 600 |
| Power input | AC 90–264 V / 40–60 Hz |
| Interfaces | SMA · USB Device |
| Wireless communication | Wi-Fi · Bluetooth |
Before use
Check polarity, chemistry, individual cell voltage and leads before connecting. These specifications apply to EB240, not EB480.
