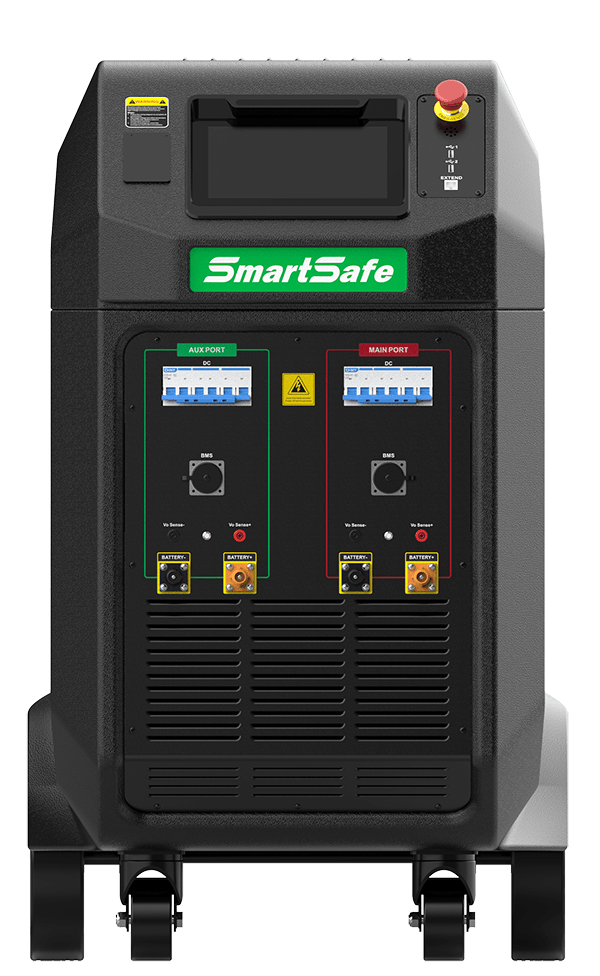

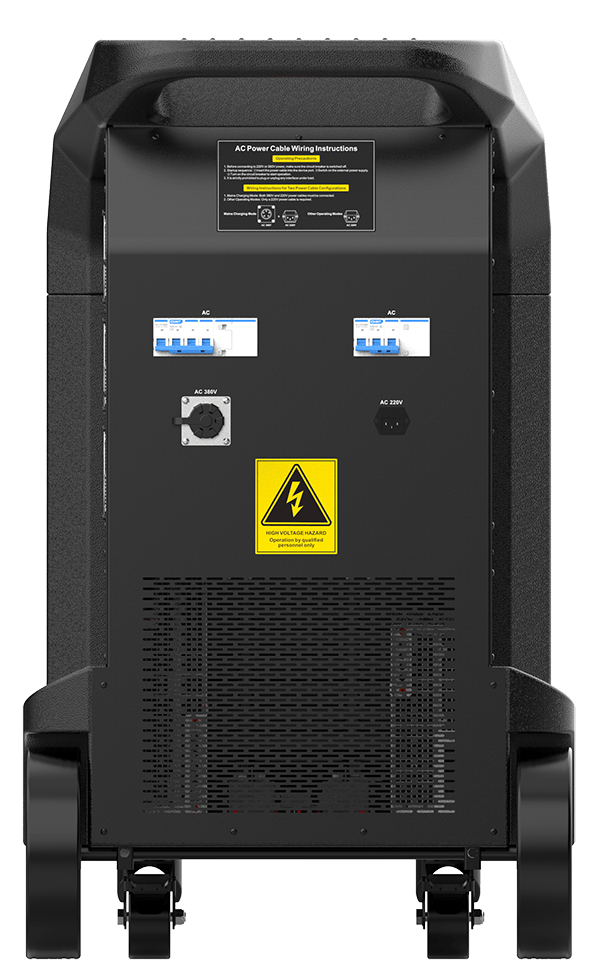

EP865 V2.0

Battery pack charge & discharge system — up to 30 kW, BMS communication, SOH health assessment

Prices are available to approved distributors.

Request a quote
SKU: EP865-V2 Category:

EP865 V2.0 is a purpose-built system for maintaining battery packs of electric and hybrid vehicles. It supports charging and discharging both through the vehicle port and on detached packs and modules, with broad BMS protocol support. Multi-channel data acquisition (up to 120 voltage and 20 temperature channels) and a built-in battery health algorithm automatically generate an SOH report, while Expert and General modes serve both engineers and beginners. The system is compatible with Ni-MH, NMC, LFP and LTO batteries, with real-time graphical data display, data export and OTA upgrades.

SOH health assessment

Built-in battery health algorithm automatically generates a state-of-health (SOH) report after a full charge/discharge cycle.

One device for module and pack

The same unit works with both modules and full packs — no equipment swapping or extra cost.

Multi-channel acquisition

Up to 120 cell voltage channels and 20 temperature channels for comprehensive monitoring of cell status distribution.

BMS communication

Expanded diagnostic module with BMS communication enables pack testing and parameter reading without disassembly.

Features

  • Charging and discharging of battery packs and modules (B2B/B2V compatible)
  • Charging range 150V–1000V, discharging 200V–865V, current up to 100A
  • Maximum charge/discharge power up to 30 kW
  • SOH health assessment with automatically generated report
  • Up to 120 cell voltage channels and 20 temperature channels
  • BMS communication — testing and reading without disassembling the pack
  • Expert and General operating modes for engineers and beginners
  • Compatibility with Ni-MH, NMC, LFP and LTO batteries
  • Real-time graphical display, data export and OTA upgrades
  • 10.1″ display (1280×800), 32 GB storage, CAN/RS485/Wi-Fi/Bluetooth

Specifications

Current measurement accuracy±0.5% F.S.

Power input AC 220V / AC 380V, 50/60 Hz Charging voltage range 150V–1000V Discharging voltage range 200V–865V Voltage measurement accuracy ±0.1% F.S.
Charge/discharge current up to 100A Charge/discharge power up to 30 kW Display 10.1″, 1280×800 Storage 32 GB Communication CAN / RS485 / Wi-Fi / Bluetooth

Specifications

Current measurement accuracy±0.5% F.S.
Power input AC 220V / AC 380V, 50/60 Hz Charging voltage range 150V–1000V Discharging voltage range 200V–865V Voltage measurement accuracy ±0.1% F.S.
Charge/discharge current up to 100A Charge/discharge power up to 30 kW Display 10.1", 1280×800 Storage 32 GB Communication CAN / RS485 / Wi-Fi / Bluetooth
