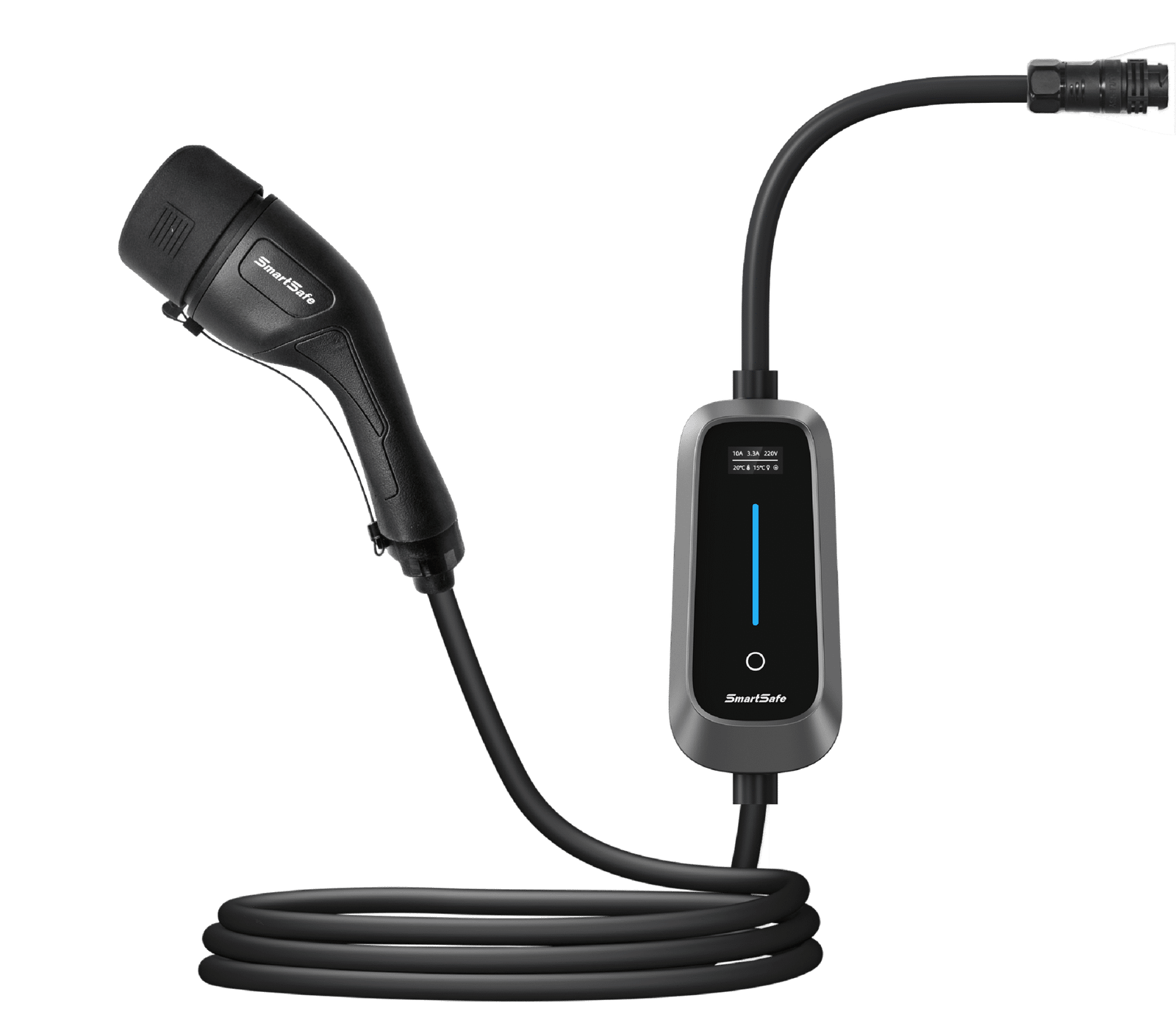

EEAC7000C-P is a smart portable electric vehicle charger designed for flexible charging needs across various scenarios — at home, on the road and beyond. With a rated power of 7.0 kW (32A) on a single-phase 230V supply, it offers seven current levels from 8A to 32A that adapt to older or newly renovated wiring, balancing charging efficiency and electrical safety. A monochrome LCD displays real-time charging status, current level and fault codes, while built-in WiFi enables remote control and monitoring via a mobile app. It automatically detects 16A/32A plugs and adjusts power accordingly, supports scheduled and timed charging, and OTA firmware upgrades for ongoing performance improvements.
7 current levels
Adjustable current from 8A to 32A — adapts to older or new wiring, balancing efficiency and safety.
Scheduled & timed charging
Delayed start of 2, 4, 6–12h and recurring timed charging within a 24-hour window.
Real-time LCD dashboard
Monochrome LCD shows voltage, current, power, status and fault codes for quick troubleshooting.
Dual-power auto-adapt
Automatically detects 16A/32A plugs and adjusts charging power accordingly.
WiFi APP remote control
Built-in WiFi for remote start/stop and charging monitoring via the mobile app.
Leakage protection
Type A + 6mA DC leakage protection and OTA firmware upgrades.
Features
- Rated power 7.0 kW (32A) on single-phase 230V AC supply
- 7 adjustable current levels (8A – 32A)
- Monochrome LCD display of status, current and fault codes
- Scheduled charging with 2, 4, 6–12 hour delay options
- Timed charging with recurring events (24-hour window)
- Automatic 16A/32A plug detection and power adjustment
- Built-in WiFi — APP-based remote control and monitoring
- OTA firmware upgrades for ongoing performance improvements
- Leakage protection Type A + 6mA DC
- Ingress protection: main unit IP67, charger IP65
Specifications
Rated power7.0 kW (32A)Input voltage230V AC, single phaseCurrent range7 levels (8 – 32A)Leakage protectionType A + 6mA DCIngress protectionMain unit IP67, charger IP65ConnectivityWiFi (APP remote control)DisplayMonochrome LCDPlug typeAutomatic 16A / 32A detectionUpgradeOTA firmware upgrade
