SMARTSAFE · EV EQUIPMENT
Battery-module charging, discharging and balancing in one device.

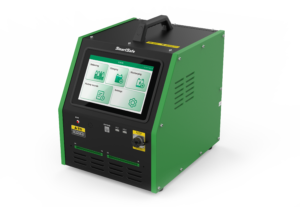

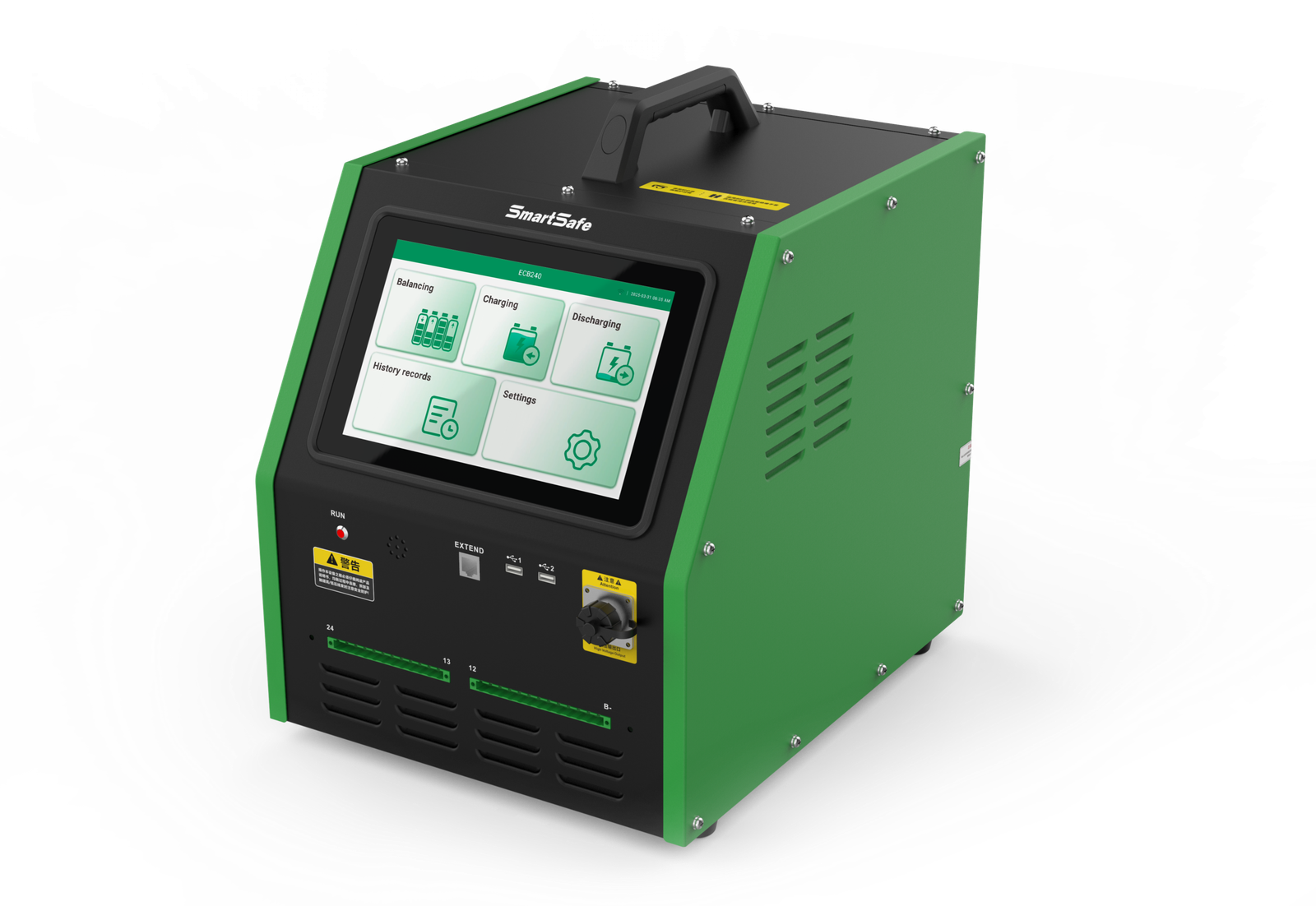

ECB240 combines module charging, discharging and equalization of up to 24 cells. The technician sets targets and follows cell voltage and current.
Key benefits
Three modes
Charging, discharging and equalization.
Up to 24 cells
Synchronized multi-cell balancing.
Protection
Voltage/current limits and reverse-polarity protection.
Workshop functions
Three service modes
Charge, discharge and equalize cells with one device and set the target voltage and current separately.
Up to 24 cells
Two banks of 12 channels support parallel monitoring and equalization of a suitable module.
Battery chemistries
Settings support compatible ternary lithium, LiFePO₄ and lithium titanate modules.
Live data
Follow cell voltages and current in real time; record curves and results and export reports.
Protection limits
Monitor overcharge, overdischarge, polarity, overheating, short circuits and current limits.
Firmware updates
Connectivity supports firmware updates when available for the supplied configuration.
Technical specifications
| Parameter | Value |
|---|---|
| Module voltage | 0–112 V DC |
| Cell voltage | 1.6–5 V |
| Equalization channels | 2 × 12 |
| Cell interfaces | 12-pin + 13-pin |
| Charging | 0.5–40 A / 3.2 kW max |
| Discharging | 0.1–20 A / 2.4 kW max |
| Cell-voltage accuracy | ±0.1% FS ±5 mV |
| Cell-current accuracy | ±0.5% FS ±0.05 A |
| Display | 10.1 in / 1280 × 800 |
| Power input | AC 100–240 V / 50–60 Hz |
| Interfaces | Wi-Fi · Bluetooth · USB · RJ45 |
| Charge mode | CC + CV |
| Discharge mode | CC |
Before use
Confirm chemistry, cell count and connection leads before attaching a module; set limits according to the battery maker’s instructions.
