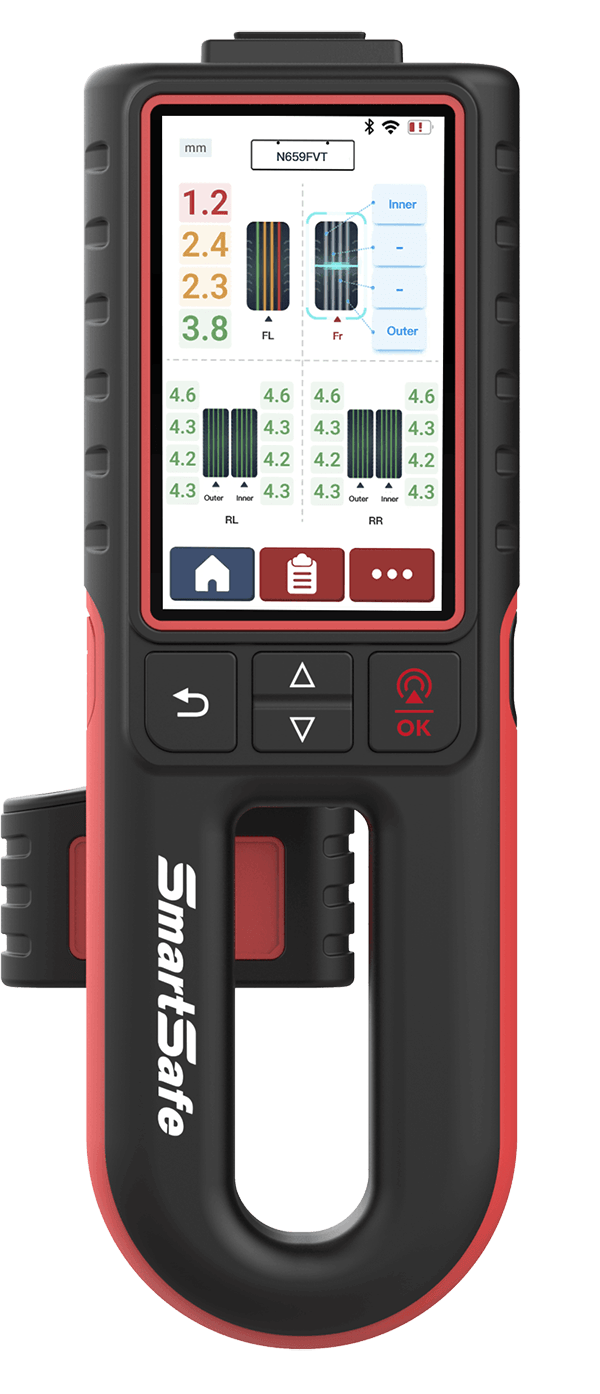

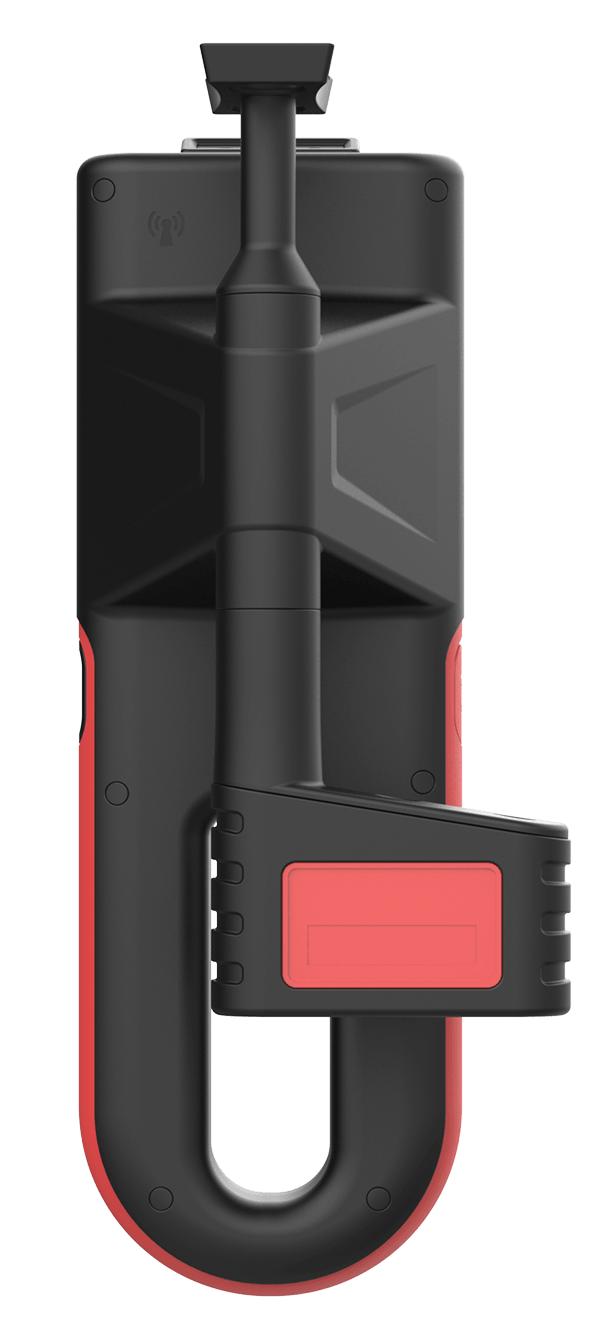

TIT513 is the first handheld 2-in-1 device that combines tire tread depth measurement with full TPMS function — activation, programming, relearning and diagnostics. Compact and portable, it enables fast entry inspection with license plate recognition, 0.1 mm measurement accuracy and shareable reports. It covers all 315 and 433 MHz TPMS sensors across mainstream vehicle models.
Industry-first 2-in-1
The industry-first handheld device combining tread depth measurement and TPMS inspection in one compact tool.
Smart entry inspection
Vehicle entry inspection with license plate recognition — fast identification and logging right at the service entrance.
0.1 mm tread precision
Tire tread depth measurement with accuracy up to 0.1 mm — reliable assessment of tire condition and legal compliance.
Complete TPMS service
Activation, programming, relearning and diagnostics of the TPMS system — all from a single device.
Broad sensor compatibility
Support for all 315 and 433 MHz TPMS sensors, covering mainstream vehicle models on the market.
Shareable inspection reports
Generates comprehensive tread depth and TPMS reports with data comparison and sharing.
Features
- Industry-first handheld 2-in-1 — tread depth and TPMS in one device
- Smart entry inspection with license plate recognition
- Tread depth measurement with accuracy up to 0.1 mm
- Complete TPMS service: activation, programming, relearn and diagnostics
- Support for all 315 and 433 MHz TPMS sensors (mainstream vehicle models)
- Fast reading of TPMS fault codes (DTC) with causes and status
- Professional, shareable reports with data comparison
- 3.97" LCD touch screen, Android 10, Wi-Fi and Bluetooth
Specifications
| Model | TIT513 · 2-in-1 tread depth & TPMS tool |
|---|---|
| Tread measurement accuracy | 0.1 mm |
| Max. tread measurement width | 180 mm |
| TPMS communication | 315 & 433 MHz |
| Measuring camera | 2 MP |
| Photo camera | 8 MP |
| Operating system | Android 10 |
| CPU | MTK8365 |
| Memory | 2 GB |
| Internal storage | 32 GB |
| Display | 3.97" LCD touch screen, 480×800 |
| Communication | Wi-Fi 2.4/5 GHz · Bluetooth |
| Battery | 7.4 V / 3000 mAh |
