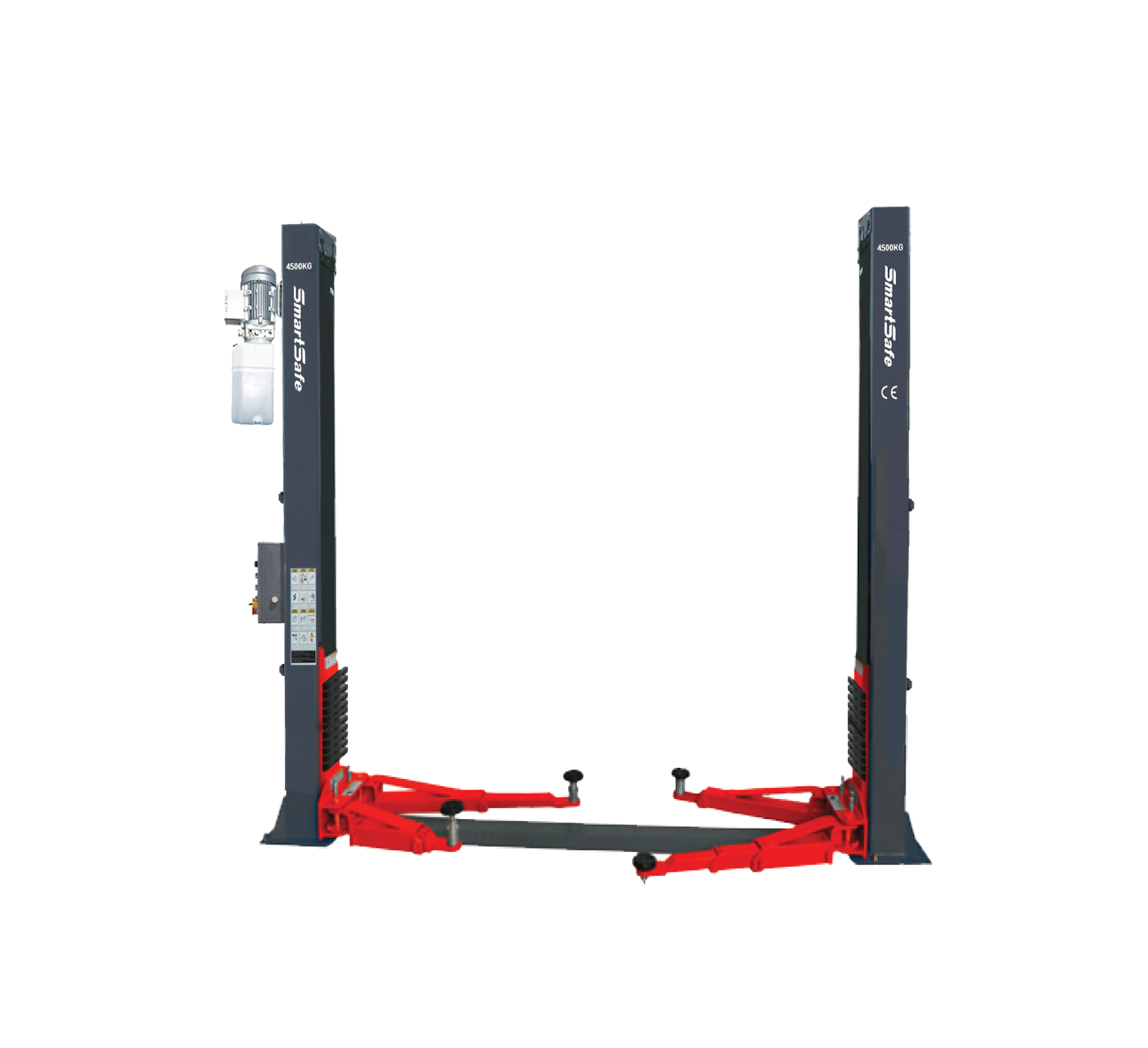

ST245A (ST-245A) is a premium floor-plate two-post hydraulic lift with 4,500 kg capacity for professional workshops lifting passenger and light commercial vehicles up to that weight. Electric unlock of the safety mechanism, tooth-type ratchet arm locks, multi-safety devices, steel-rope carriage levelling and a full-automatic EU control system with auto unlock on lowering make it reliable for everyday shop use.
4,500 kg capacity
Lifts passenger and light commercial vehicles up to 4,500 kg — broad coverage for service work.
Electric / electromagnetic unlock
Electric unlock of the safety mechanism and electromagnetic unlocking for faster, safer operation.
Tooth-type ratchet arm locks
Arm locks with tooth-type ratchet and multi-safety devices increase holding reliability.
Steel-rope levelling
Steel rope controls levelling of both carriages — even rise and lower of the columns.
Hydraulic and height protection
Safety valve against burst hoses, electromechanical height limitation and stop function during lowering.
EU automatic control system
Full-automatic EU-standard control with auto unlock when lowering and scratch-resistant powder coating.
Features
- Floor-plate two-post hydraulic lift
- Lifting capacity up to 4,500 kg
- Electric unlock safety mechanism
- Tooth-type ratchet arm locks
- Multi-safety devices
- Safety valve against burst hoses
- Steel-rope controlled carriage levelling
- Stop function during lowering
- Electromagnetic unlocking
- Electromechanical height limitation
- Scratch-resistant powder coating
- EU-standard full automatic control — auto unlock when lowering
- Electro-hydraulic drive, 2.2 kW motor, 380 V supply
- CE certified premium equipment with user manuals

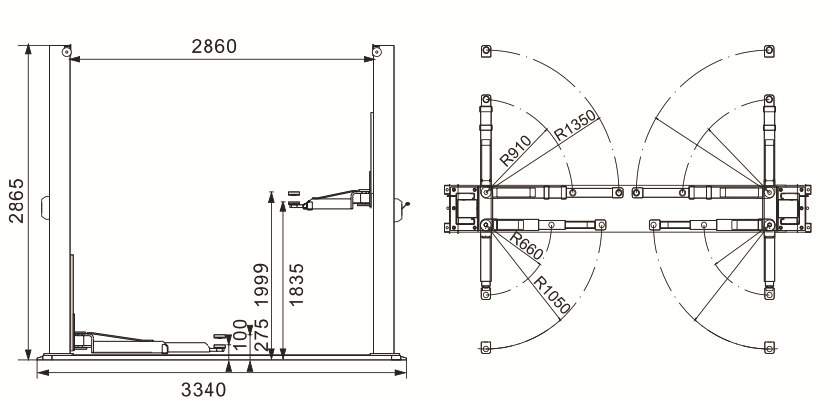

Specifications
| Model | ST245A / ST-245A · floor-plate two-post lift |
|---|---|
| Lifting capacity | 4,500 kg |
| Min. height | 95 mm |
| Lifting height | 1,850 mm |
| Rise time | 50 s |
| Descending time | 30 s |
| Total height | 2,820 mm |
| Inner width | 2,860 mm |
| Total width | 3,440 mm |
| Net weight | 630 kg |
| Motor power | 2.2 kW |
| Power supply | 380 V |
| Drive method | Electro-hydraulic |
| Hydraulic oil | 46# anti-wear hydraulic oil · 10 L |
| Air pressure | 6 – 8 bar |
| Operating temperature | 5 – 40 °C |
| Safety | Electric unlock · tooth-type arm locks · multi-safety · safety valve · steel rope · stop on lower · electromagnetic unlock · height limit |
| Standard / optional equipment | Standard arm and floor-plate set · EU automatic control system · optional extended / special adapters and accessories by configuration |
| Container loading | 20GP — 27 pcs · 40HQ — 43 pcs |
| Certification | CE |
| Documentation | User manuals · CE certificates · promo material |
