ST245CA (ST-245CA) is a premium clear-floor two-post hydraulic lift with 4,500 kg capacity for professional workshops lifting passenger and light commercial vehicles up to that weight. Its key advantage over standard lifts is the 1.95 m direct cylinder drive without chain — it increases strength by 50%, improves safety and eliminates the risk of a broken chain. Electric unlock of the safety mechanism, tooth-type ratchet arm locks, multi-safety devices, safety valve against burst hoses, steel-rope carriage levelling, stop function during lowering, electromagnetic unlocking, scratch-resistant powder coating, electromechanical height limitation and a full-automatic EU control system with auto unlock on lowering make it reliable for everyday shop use.

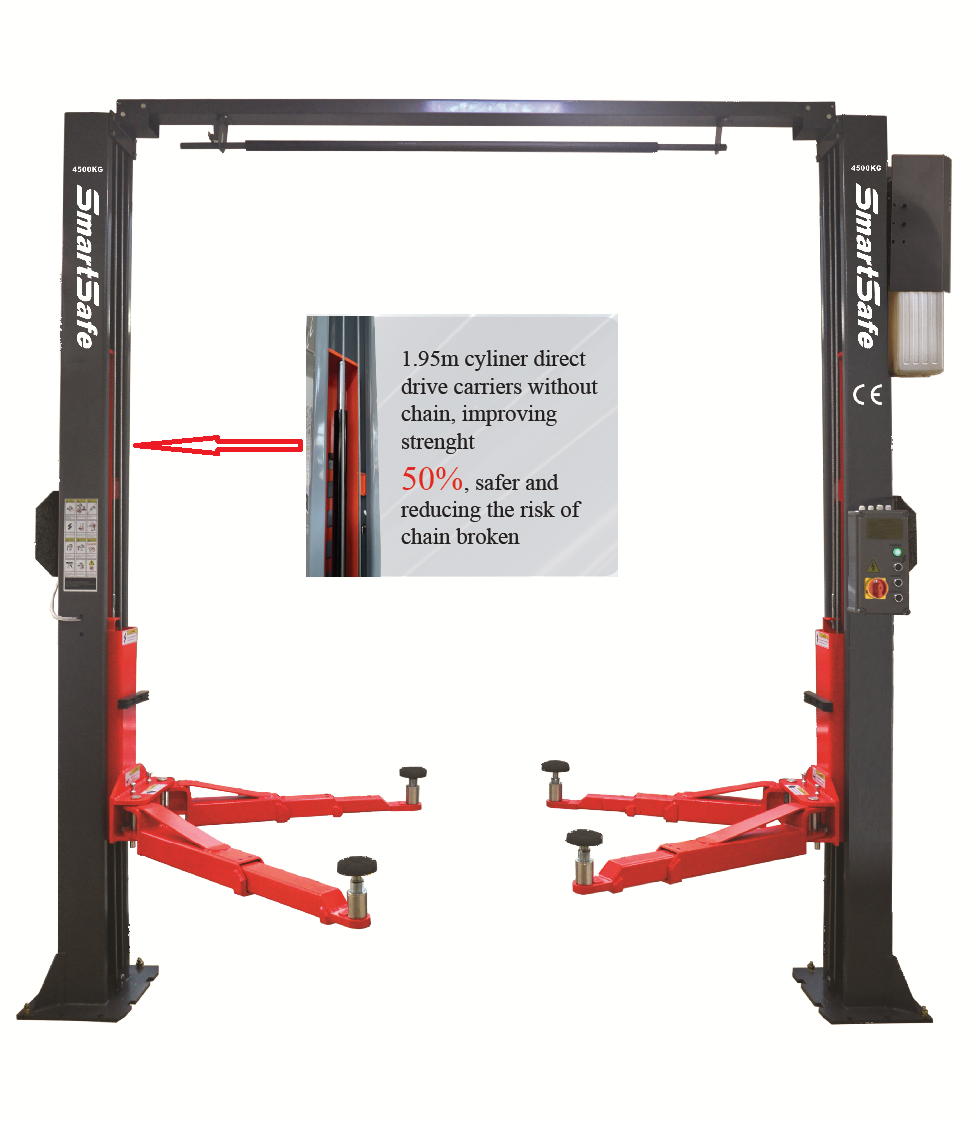

1.95 m direct cylinder drive, no chain
1.95 m cylinders drive the carriages directly without chain — increases strength by 50%, improves safety and eliminates the risk of a broken chain.
4,500 kg capacity
Lifts passenger and light commercial vehicles up to 4,500 kg — clear floor allows unobstructed work under the vehicle.
Electric / electromagnetic unlock
Electric unlock of the safety mechanism and electromagnetic unlocking for faster, safer operation.
Tooth-type ratchet arm locks
Arm locks with tooth-type ratchet and multi-safety devices increase holding reliability.
Steel-rope levelling
Steel ropes control levelling of both carriages — even rise and lower of the columns.
EU automatic control system
Full-automatic EU-standard control with auto unlock when lowering and scratch-resistant powder coating.
Features
- Clear-floor two-post hydraulic lift
- Lifting capacity up to 4,500 kg
- 1.95 m direct cylinder drive without chain — +50% strength, no chain-break risk
- Electric unlock safety mechanism
- Tooth-type ratchet arm locks
- Multi-safety devices
- Safety valve against burst hoses
- Steel-rope controlled carriage levelling
- Stop function during lowering
- Electromagnetic unlocking
- Electromechanical height limitation
- Scratch-resistant powder coating
- EU-standard full automatic control — auto unlock when lowering
- Electro-hydraulic drive, 2.2 kW motor, 380 V supply
- CE certified premium equipment with user manuals

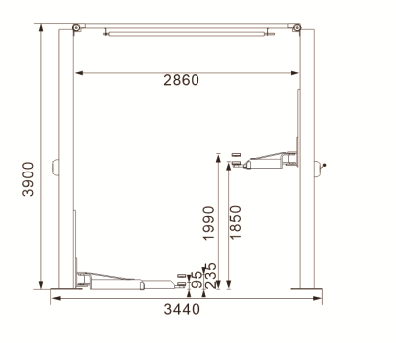

Specifications
| Model | ST245CA / ST-245CA · clear-floor two-post lift |
|---|---|
| Lifting capacity | 4,500 kg |
| Min. height | 95 mm |
| Lifting height | 1,990 mm |
| Rise time | 50 s |
| Descending time | 30 s |
| Total height | 3,900 mm |
| Inner width | 2,860 mm |
| Total width | 3,440 mm |
| Net weight | 715 kg |
| Motor power | 2.2 kW |
| Power supply | 380 V |
| Drive method | Electro-hydraulic · 1.95 m direct cylinders (no chain) |
| Hydraulic oil | 46# anti-wear hydraulic oil · 10 L |
| Operating temperature | 5 – 40 °C |
| Safety | Direct chainless drive · electric unlock · tooth-type arm locks · multi-safety · safety valve · steel ropes · stop on lower · electromagnetic unlock · height limit |
| Standard / optional equipment | Standard arm set · EU automatic control system · optional extended / special adapters and accessories by configuration |
| Container loading | 20GP — 15 pcs · 40HQ — 38 pcs |
| Certification | CE |
| Documentation | User manual · CE certificate · promo material |
