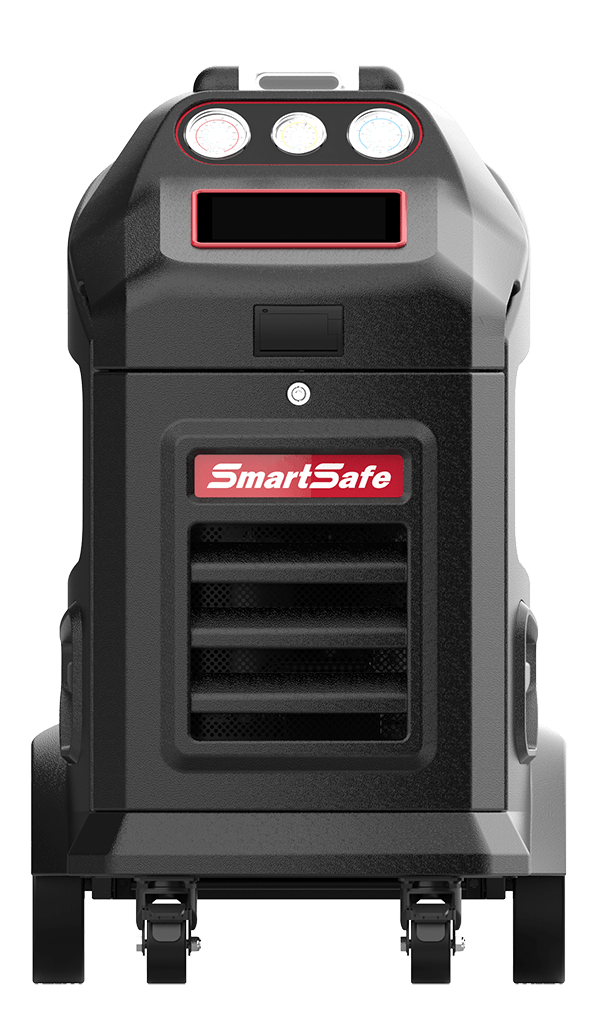

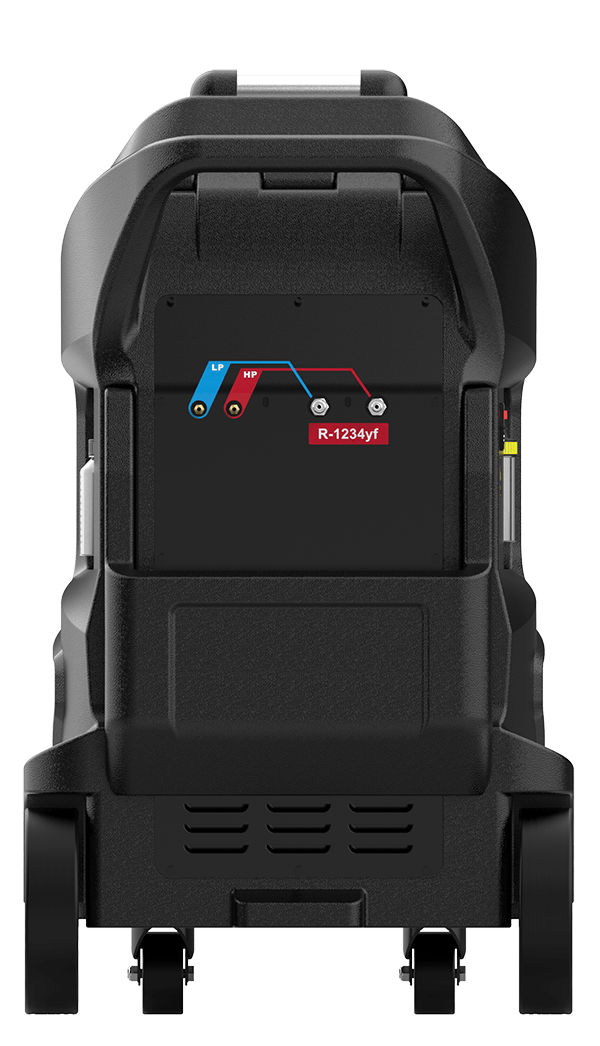

AC719+ is an exceptionally cost-effective A/C maintenance solution designed for servicing conventional vehicles. A built-in vehicle database automatically matches refrigerant parameters, and the full automatic cycle covers recovery, flushing, vacuum evacuation, PAG oil charging and refrigerant charging in LP, HP and LP+HP modes. It supports an R134a or R1234yf configuration, online and USB upgrades, while precise electronic weighing of gas and oil guarantees repeatable service results.
Vehicle database
Built-in vehicle-specific database with automatic refrigerant parameter matching.
R134a / R1234yf
Supports R134a or R1234yf refrigerant configuration — selected per vehicle.
Automated service cycle
Full-cycle automatic operation for A/C system maintenance in a single run.
PAG oil charging
Supports PAG compressor oil charging with precise dosing.
Online & USB upgrade
System upgrade over the network or USB — always an up-to-date database and software.
Features
- Automatic recovery, recycling and charging of refrigerant (≥95% rate)
- Supports R134a or R1234yf refrigerant (select one)
- Built-in vehicle database with automatic parameter matching
- Full automatic A/C maintenance cycle
- System flushing, vacuum evacuation and leak test
- PAG compressor oil charging and refrigerant charging (LP, HP, LP+HP)
- Precise electronic weighing of main tank and oil bottle (±10 g)
- Online and USB system upgrade
- Suitable for gasoline, hybrid and new energy vehicles
Specifications
RefrigerantR134a or R1234yf (select one)Applicable vehiclesGasoline / hybrid / new energy vehiclesRecovery rate≥95%Vacuum pump capacity≥128 L/min (50 Hz) / ≥142 L/min (60 Hz)Compressor power1/2 HPDry filter service life120 kgScale accuracy (tank & oil)±10 gMain tank capacity0 – 22 kgNew oil bottle>250 ml (PAG/POE/UV)Used oil bottle>500 mlPressure range (HP/TP)-1 – 38 barPressure range (LP)-1 – 18 barPressure accuracy±0.5% FS
