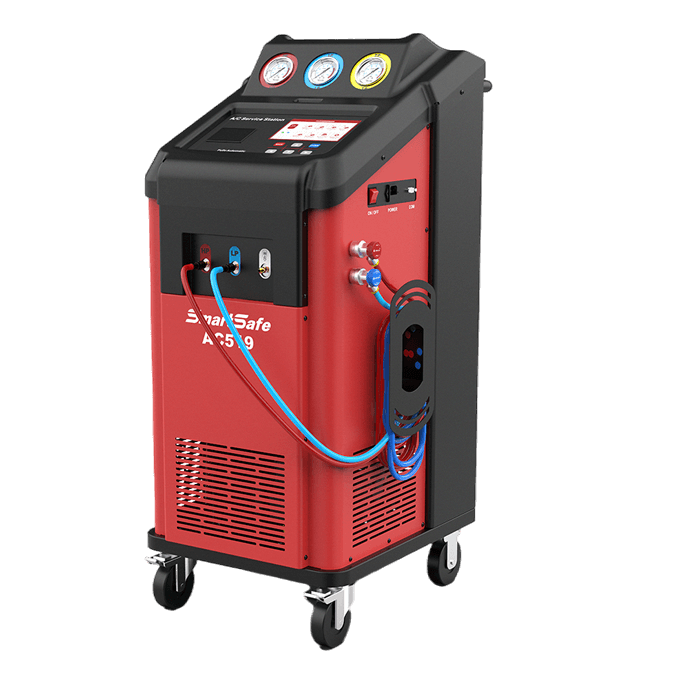

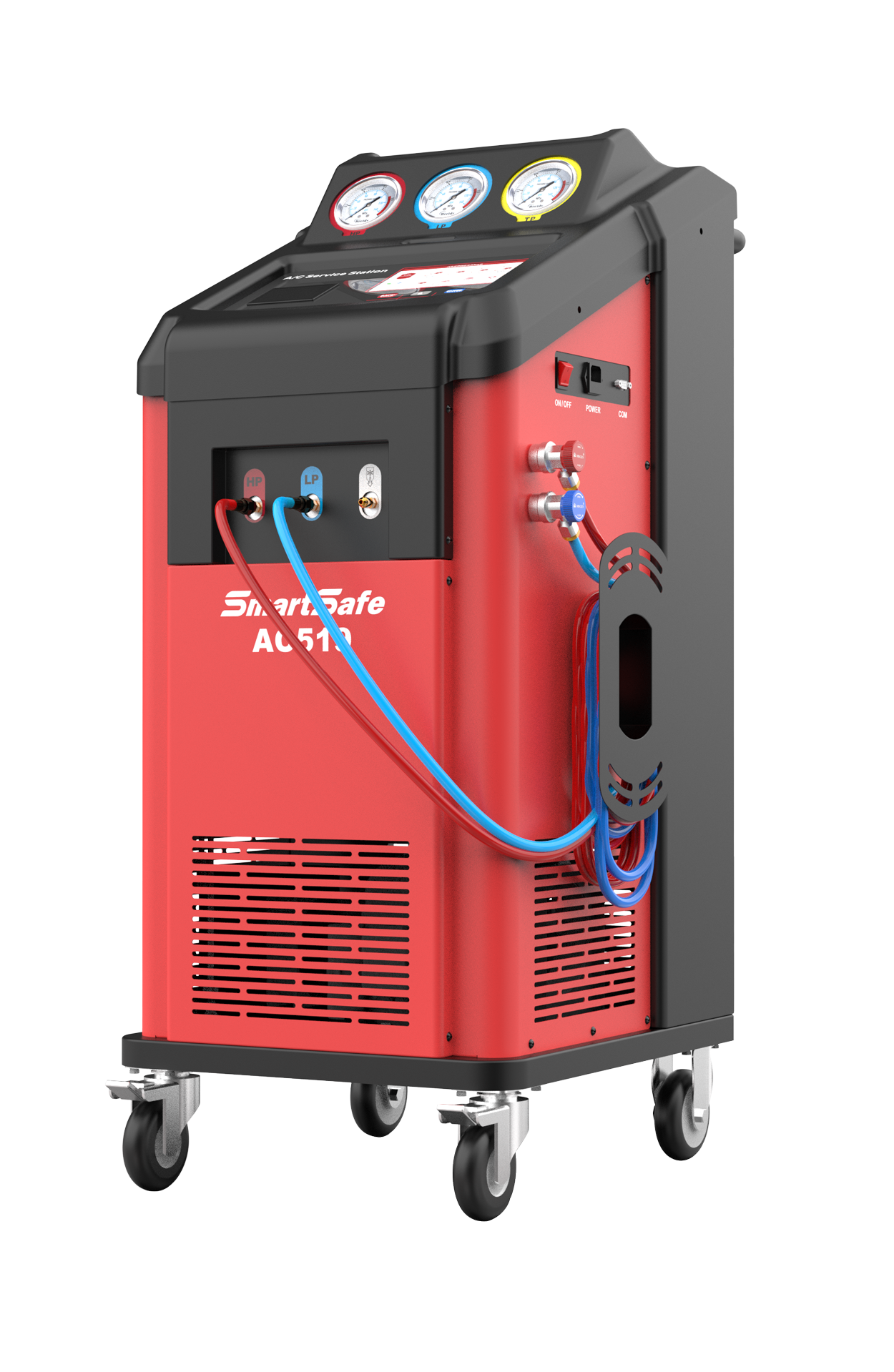

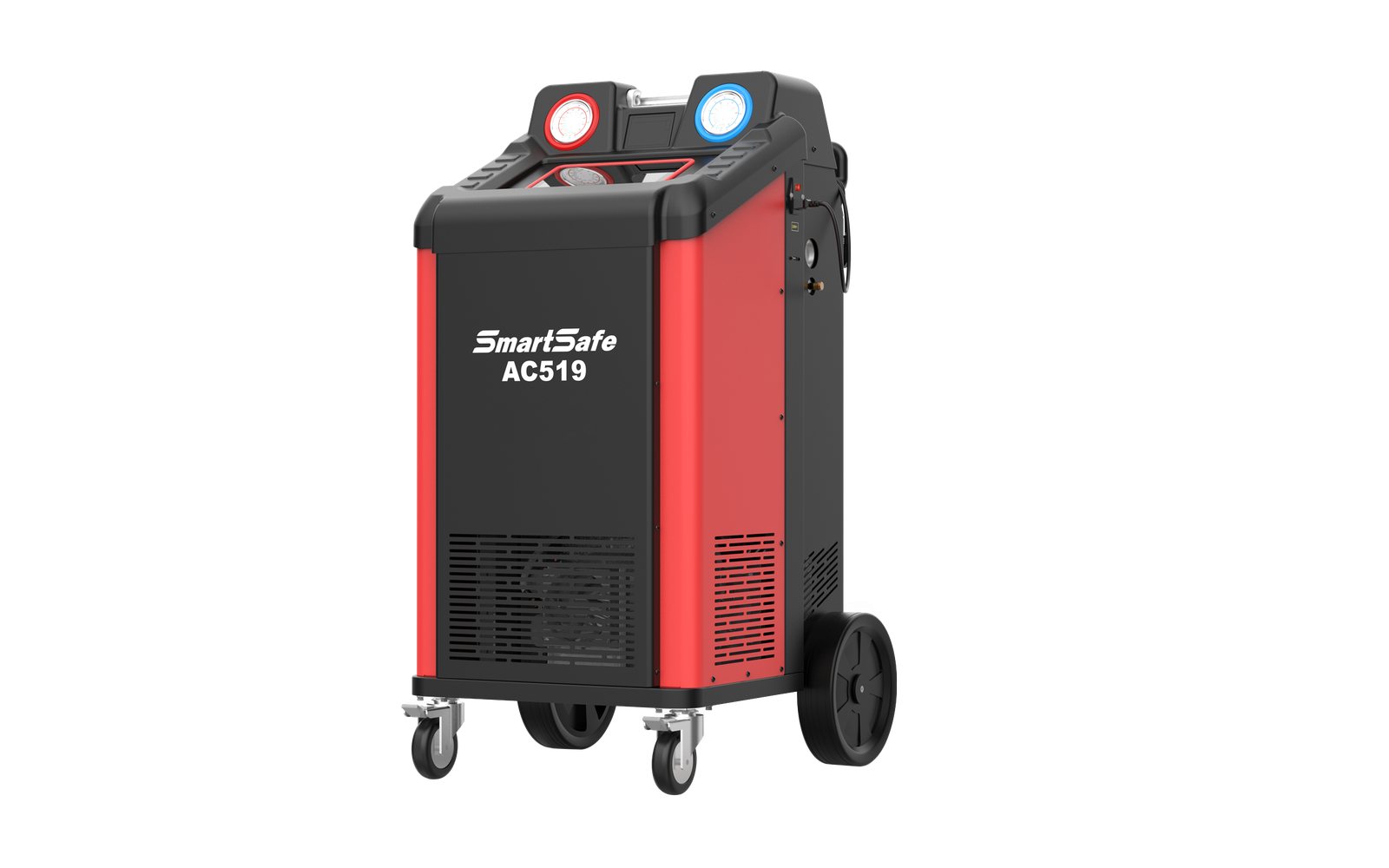

SmartSafe AC519 combines the main steps of automotive air-conditioning maintenance in one station. A built-in vehicle database helps select service parameters, while automatic and individual modes let technicians organize each job. Forward, reverse and pulse flushing support cleaning of the A/C circuit; the integrated printer records the work performed.
Choose the refrigerant configuration for your workshop: R134a or R1234yf. The station works with one refrigerant configuration at a time.
Automatic service cycle
Run flushing, recovery, vacuum evacuation, compressor oil injection and refrigerant charging from preset parameters.
Three flushing modes
Forward, reverse and pulse flushing help remove deposits and impurities from the circuit.
Vehicle database
Retrieve vehicle A/C parameters to reduce manual entry.
Built-in printer
Print service results, material consumption and labor information.
Functions
- A/C circuit flushing to remove oil deposits, particles and other impurities.
- Recovery and purification of refrigerant for reuse.
- Vacuum evacuation of the vehicle and equipment lines.
- Manual or automatic compressor oil injection controlled by an electronic scale.
- Refrigerant charging to a preset quantity.
- Automatic operation or independent selection of individual functions.
- Integrated vehicle database; the manual also supports software and database updates.
- Printing of completed service operations.
Technical data
| Refrigerant configuration | R134a or R1234yf — one refrigerant configuration |
|---|---|
| Vehicle types | Gasoline / hybrid vehicles |
| Refrigerant recovery rate | ≥95% |
| Vacuum pump capacity | ≥42 L/min (220 V, 50 Hz) / ≥50 L/min (110 V, 60 Hz) |
| Compressor power | 3/8 HP |
| Dryer filter service capacity | 60 kg |
| Main tank scale accuracy | ±10 g |
| New oil bottle capacity | ≥250 ml (PAG) |
| Used oil bottle capacity | ≥500 ml |
| Pressure measurement range (HP/TP) | −1–38 bar |
| Pressure measurement range (LP) | −1–18 bar |
| Pressure measurement accuracy | ±0.5% FS (full scale) |
| Power supply | AC 110 V / 220 V, 50/60 Hz |
