ST240A (SC-240A) is a premium mid-rise scissor lift with 4,000 kg capacity for professional workshops that need stable lifting of passenger and light commercial vehicles without permanent floor installation. A low profile (min. 110 mm), dual hydraulic cylinders, mechanical safety locks and 24 V controls make it ideal for everyday service, wheel alignment and quick jobs in space-limited shops.
Mid-rise scissor design
Stable scissor platform lifting up to 1,000 mm — room to work under the vehicle with a compact workshop footprint.
Dual hydraulic cylinders
Two hydraulic cylinders with mechanical safety locks for even, reliable lifting up to 4,000 kg.
Automatic arm locking
Automatic arm locking and mechanical locks reduce the risk of unintended lowering during work.
24 V safety control
Low-voltage 24 V controls, emergency stop and hydraulic safety valve for workshop safety.
Portable, no installation
Portable design — no floor installation required; easy to place and space-saving in the shop.
Low profile 110 mm
Minimum platform height of 110 mm lets low and sports cars drive on without extra ramps.
Features
- Mid-rise scissor lift with 4,000 kg capacity
- Dual hydraulic cylinders with mechanical safety locks
- Automatic arm locking system
- 24 V safety control voltage and emergency stop button
- Hydraulic safety valve protection
- Anti-skid platform surface
- Portable design — no floor installation needed
- Space-saving low-profile layout
- Extendable platforms 1,420–1,950 mm for different wheelbases
- CE certified premium equipment with user manual
Specifications
| Model | ST240A / SC-240A · mid-rise scissor lift |
|---|---|
| Lifting capacity | 4,000 kg |
| Min. height (E) | 110 mm |
| Max. height (F) | 1,000 mm |
| Platform length (A–B) | 1,420 – 1,950 mm (extendable) |
| Platform width (C) | 460 mm |
| Overall width (D) | 1,850 mm |
| Lifting time | 25 – 35 s |
| Motor power | 2.2 kW |
| Power supply | 220 V / 380 V · 50 Hz |
| Control voltage | 24 V |
| Oil tank | 8 L |
| Net weight | 580 kg |
| Safety | Dual cylinders · mechanical locks · auto lock · E-stop · safety valve · anti-skid |

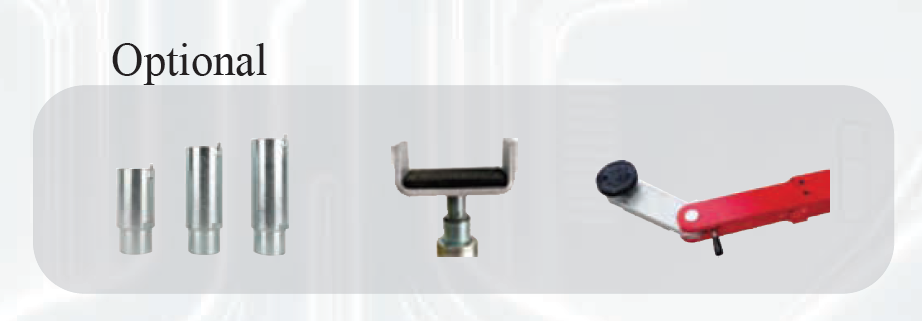

| Optional equipment | Air-hydraulic pump · extended platforms · wheel alignment kit · LED work lights · tool tray · secondary lock system |
| Certification | CE |
| Documentation | User manual · CE certificate |
