SMARTSAFE · WORKSHOP DIAGNOSTICS
One platform. A clearer diagnosis.

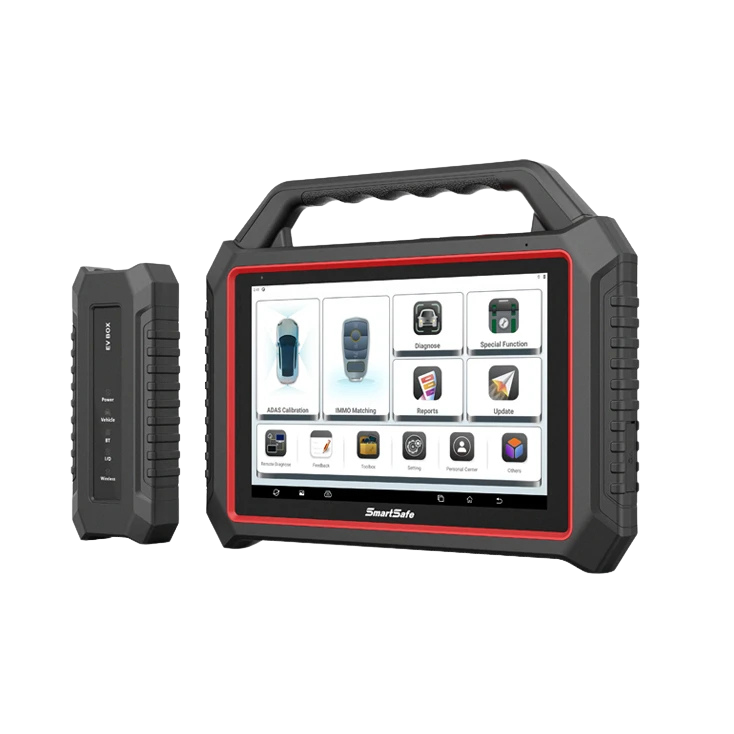

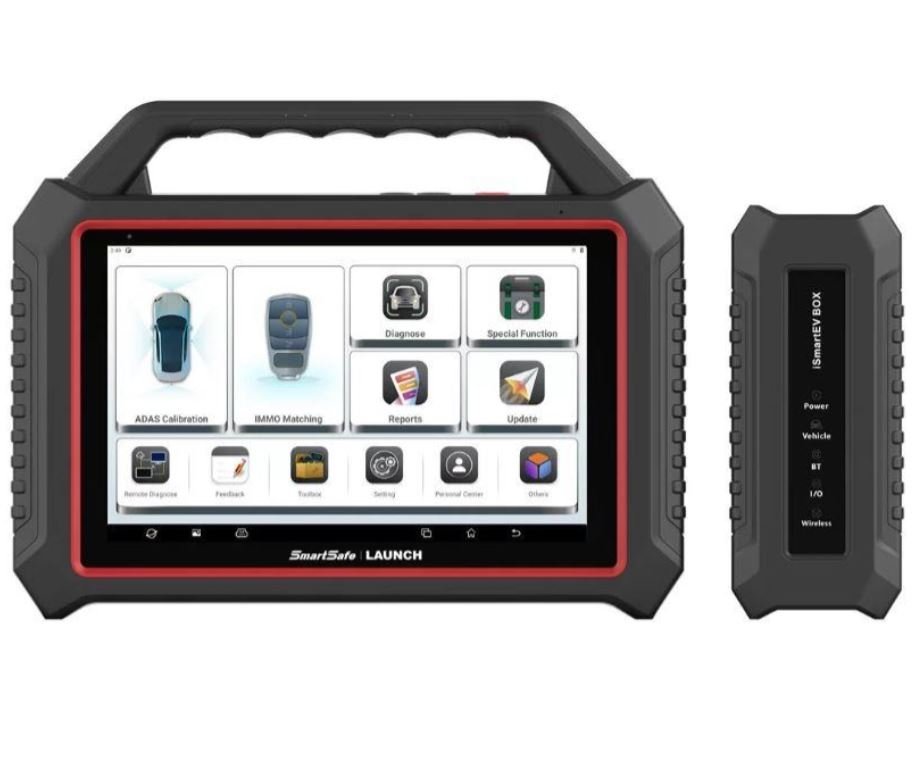

SmartSafe ST10 brings fault-code analysis, live data and active tests into one diagnostic workflow. Its network topology view helps locate communication faults, while supported coding and service procedures assist with repair and component replacement.
Built for your workshop
Full-system diagnostics
Read and clear DTCs, inspect live data and test supported actuators.
ECU topology
See the relationship between control units and identify communication problems.
Expandable platform
Add compatible ADAS, IMMO or measurement equipment as your workshop needs grow.
Functions in practice
Service procedures
Oil reset, EPB, DPF, steering-angle calibration, injector coding, ABS bleeding and battery adaptation on supported vehicles.
Coding & programming
Vehicle-dependent coding, adaptation and programming functions, with the required software and online access.
Communication
Compatible VCI communication supports DoIP, CAN FD and Pass-Thru protocols D-PDU, J2534 and RP1210.
Reports & updates
Save diagnostic results and update supported diagnostic software, firmware and applications.
Technical overview
| Parameter | Specification |
|---|---|
| Operating system | Android |
| Processor | 8 cores, 2.0 GHz |
| Display | 10.1-inch touchscreen, 1920 × 1200 |
| Memory | 4 GB RAM / 128 GB storage |
| Cameras | 8 MP front / 13 MP rear |
| Wi-Fi | 2.4 GHz / 5 GHz |
| Tablet operating temperature | 0–45 °C |
Configuration & compatibility
The ST10 is supplied in different equipment and software configurations. Confirm the VCI, passenger-car or heavy-duty coverage and update period in your quotation. ADAS calibration equipment, IMMO modules and other expansion tools are optional. Online services and SGW access may require separate activation; availability depends on the vehicle and installed software.
