ATF601+V2.0 is a professional station for flushing and exchanging automatic transmission fluid. It is built for shops that cover a wide range of brands and models: a built-in database with over 11,000 transmission entries speeds up parameter matching, standard adapters cover about 80% of mainstream models, and 200+ optional special adapters extend coverage further. The unit performs equal-volume (1:1) exchange, heats new oil and fills isothermally for a more stable process, with used-oil sampling, circulation flushing, level adjustment and equipment draining.
11,000+ transmission database
Built-in database with over 11,000 transmission entries — quick matching of exchange parameters across brands and models.
Broad adapter compatibility
Standard adapters cover about 80% of mainstream models; optional 200+ special adapters for special configurations.
Intelligent temperature control
Heating and isothermal filling of new oil — more stable exchange aligned with transmission operating conditions.
1:1 fluid exchange
Equal-volume exchange of old and new oil with ±100 ml error and average speed around 2 L/min.
Circulation flushing
Circulation flushing of the transmission oil circuit before exchange — cleaner system and better service quality.
Sampling and level control
Used-oil sampling, level adjustment by adding or draining, and draining residual oil from the equipment.
Features
- Professional station for ATF flush and exchange in automatic transmissions
- Database with 11,000+ transmission entries for fast parameter matching
- Standard adapters for ~80% of models + optional 200+ special adapters
- Equal-volume (1:1) oil exchange with ±100 ml error
- New-oil heating and isothermal filling (0–100 °C)
- Circulation flushing of the transmission circuit
- Used-oil sampling, level adjustment and equipment draining

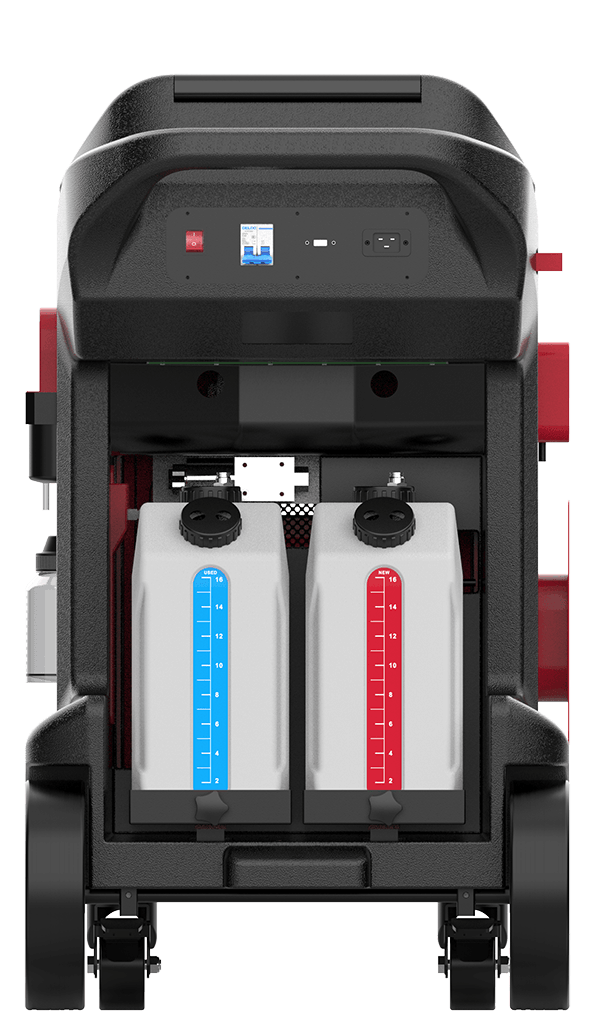

- Two 18 L tanks · volume measurement ±10 g · pressure gauge 0–200 psi
Specifications
| Model | ATF601+V2.0 · ATF flush and exchange station | Power input | AC 200–240 V, 50/60 Hz / AC 100–120 V, 50/60 Hz | Maximum power | 3500 W (220 V, with heating) | Exchange method | Equal-volume exchange (1:1) | Equal-volume error | ±100 ml | Average exchange speed | 2 L/min | Volume measurement accuracy | ±10 g | Measurement range | 0–10 kg | Tank capacity | 18 L × 2 | Temperature control | 0–100 °C | Pressure gauge | 0–200 psi | Transmission database | 11,000+ entries | Adapters | Standard ~80% of models · optional 200+ special |
|---|
